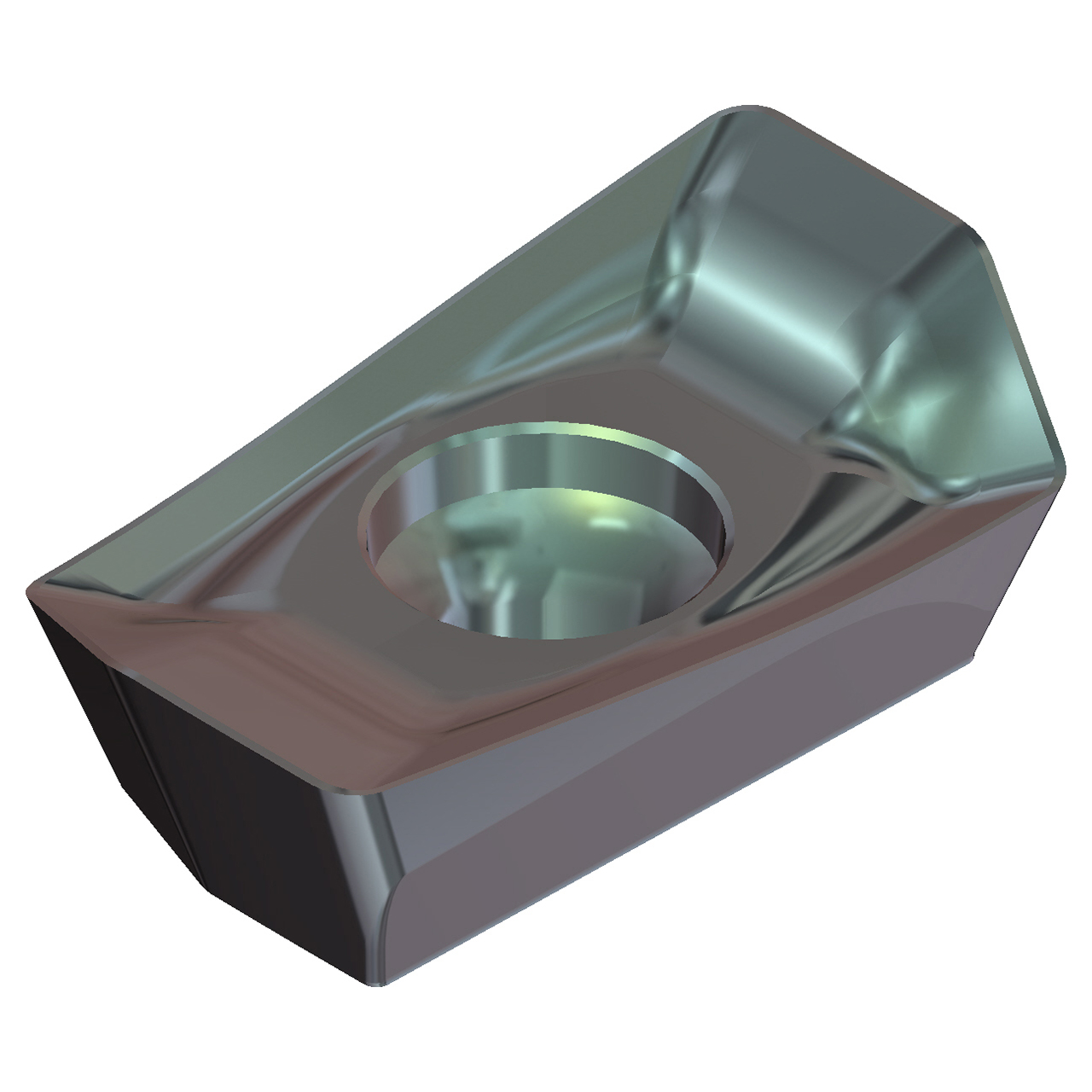

Sumitomo 14U3ATC| AOET170504PEFR-S-DL2000 15.00mm Maximum Depth Cut x 0.40mm Radius x 5.50mm Thickness Carbide DL2000 Coated WEZ Milling Insert

$23.48 $21.13
(You save $2.35)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
AOET
Insert Size:
1705
Material:
Carbide
Manufacturer's Grade:
DL2000
Coating:
DL2000
Width (Inch):
3/4"
Width (Decimal Inch):
0.7677"
Width (mm):
19.50mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.2165"
Thickness (mm):
5.50mm
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23168746
Weight:
0.25 LBS
Shipping:
Free Shipping
Sumitomo 14U3ATC| AOET170504PEFR-S-DL2000 15.00mm Maximum Depth Cut x 0.40mm Radius x 5.50mm Thickness Carbide DL2000 Coated WEZ Milling Insert

Product Specifications
EDP Number14U3ATC
Product Code-ANSIAOET170504PEFR-S-DL2000
Manufacturer Grade IdentificationDL2000
SeriesWEZ
Maximum Depth of Cut (mm)15.00mm
Cutting Edge Length (Decimal Length)0.7677"
Cutting Edge Length (mm)19.50mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.2165"
Insert Thickness (mm)5.50mm
CoatingDL2000
Coating ProcessPVD
Insert StyleAOET
Insert SideSingle
Insert Size1705
Chip BreakerS
Tolerance ClassE
Insert HandR
Insert MaterialCarbide
