Product Specifications

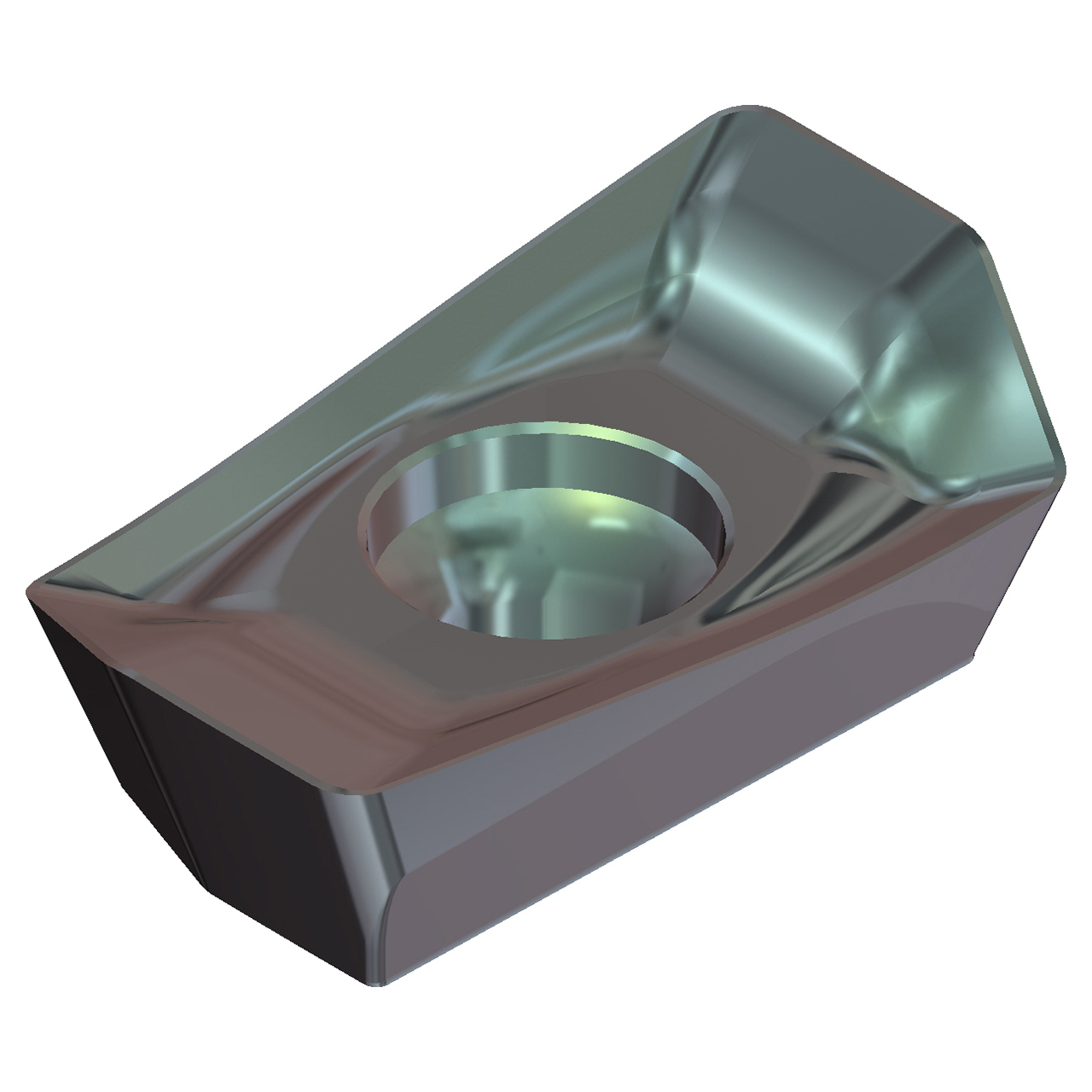

| EDP Number | 14U3ATK |
| Product Code-ANSI | AOET170532PEFR-S-DL2000 |
| Manufacturer Grade Identification | DL2000 |
| Series | WEZ |
| Maximum Depth of Cut (mm) | 15.00mm |
| Cutting Edge Length (Decimal Length) | 0.7677" |
| Cutting Edge Length (mm) | 19.50mm |
| Nose Radius (Decimal Inch) | 0.1260" |
| Nose Radius (mm) | 3.20mm |
| Insert Thickness (Decimal Inch) | 0.2165" |
| Insert Thickness (mm) | 5.50mm |
| Coating | DL2000 |
| Coating Process | PVD |
| Insert Style | AOET |
| Insert Side | Single |
| Insert Size | 1705 |
| Chip Breaker | S |
| Tolerance Class | E |
| Insert Hand | R |
| Insert Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
AOET
Insert Size:
1705
Material:
Carbide
Manufacturer's Grade:
DL2000
Coating:
DL2000
Width (Inch):
3/4"
Width (Decimal Inch):
0.7677"
Width (mm):
19.50mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.2165"
Thickness (mm):
5.50mm
interval quantity:
10
Ships:
From California in 1-2 Days
