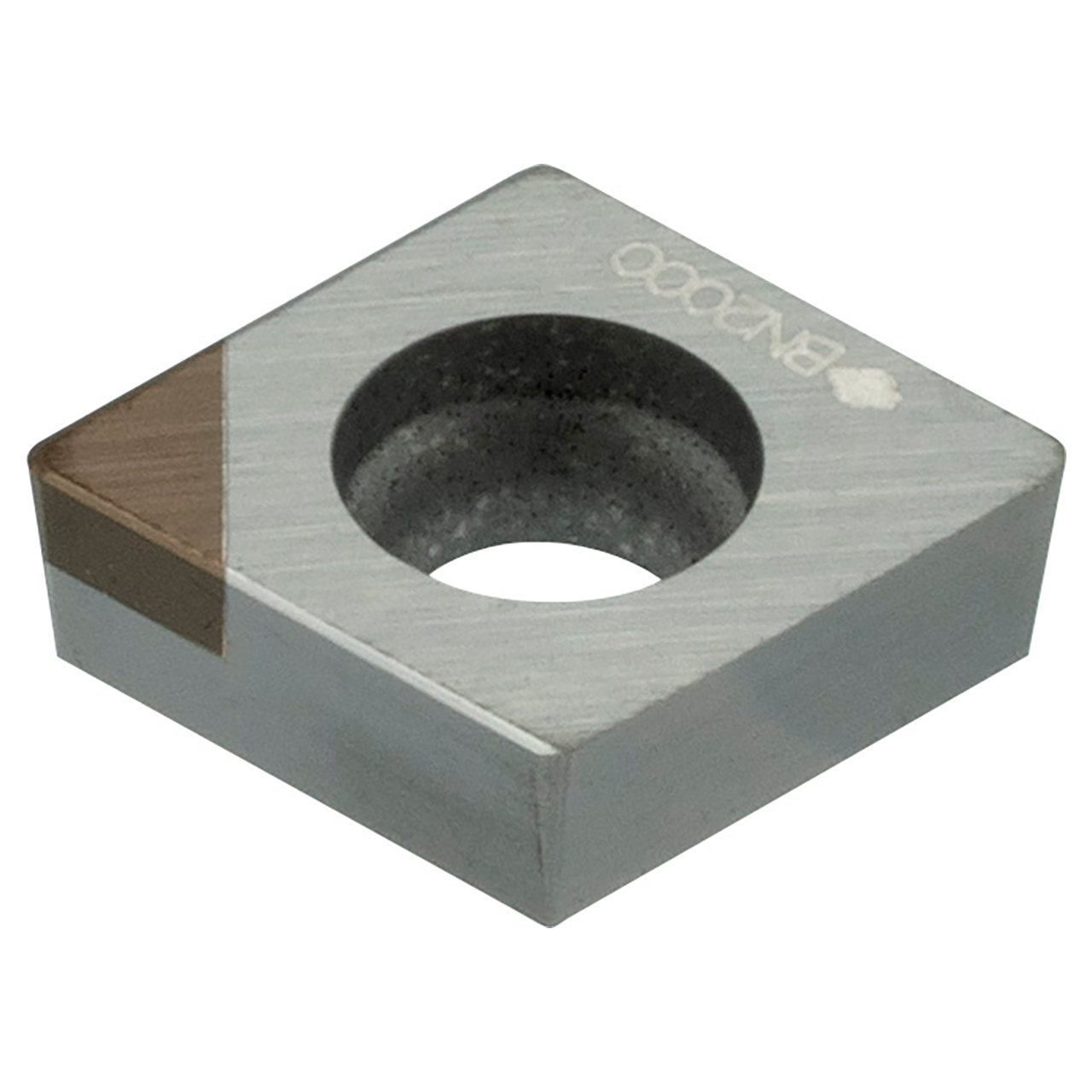

| EDP Number | 16JYDUS |
| Product Code-ANSI | NUCCEW04X102LF-BN7000 |
| Product Code-ISO | NU-CCEW04X102LF |
| Manufacturer Grade Identification | BN7000 |
| Series | BN7000 |
| Effective Length (Inch) | 0.0669" |
| Effective Length (mm) | 1.70mm |
| Nose Radius (Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Inch) | 0.1693" |
| Inscribed Circle Diameter (mm) | 4.30mm |
| Hole Diameter (mm) | 2.30mm |
| Insert Thickness (Inch) | 0.0709" |
| Insert Thickness (mm) | 1.80mm |
| Insert Size | 04X102 |
| Corner Angle | 80 Degree |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | CBN |
| Insert Style | CCEW |
| Tolerance Class | E |
| Coating | Uncoated CBN |
| Insert Holding Method | Screw-On |
| Standard Designation of the Grade, Main Application | Cast Iron, Exotic Alloys, Powdered Metal |
