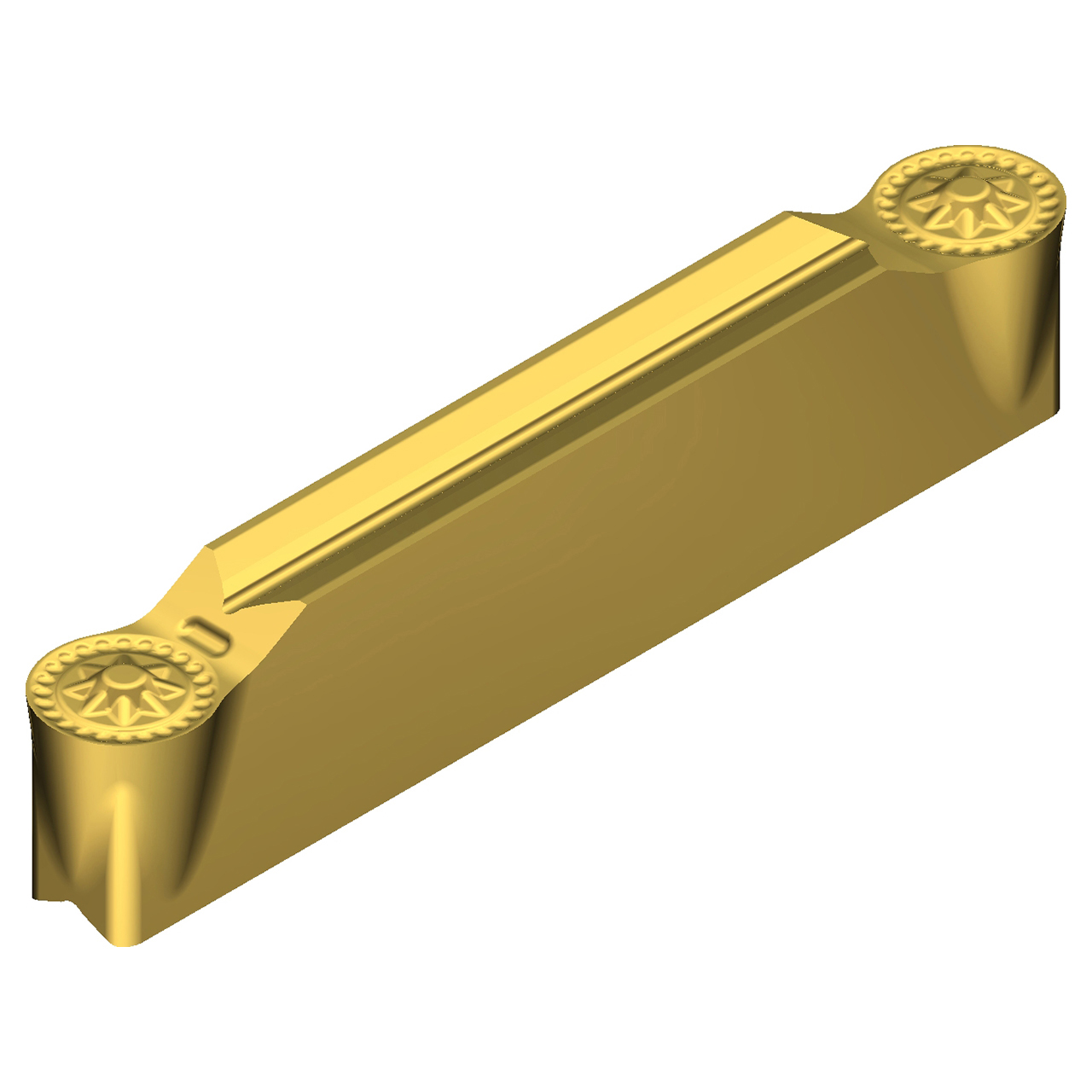

| EDP Number | 186PW11 |
| Product Code - ANSI | GCMN5187-RG-AC425K |
| Manufacturer Grade Identification | AC425K |
| Series | GND |
| Maximum Depth of Cut (Decimal Inch) | 0.9060" |
| Maximum Depth of Cut (mm) | 23.00mm |
| Cutting Width (Decimal Inch) | 0.1870" |
| Cutting Width (mm) | 4.75mm |
| Height (Decimal Inch) | 0.1610" |
| Nose Radius (Decimal Inch) | 0.0935" |
| Nose Radius (mm) | 2.37mm |
| Insert Thickness (Decimal Inch) | 0.1610" |
| Insert Thickness (mm) | 4.09mm |
| Relief Angle | 7 Degree |
| Coating | Super FF Coat |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | K |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | K |
| Chip Breaker | RG |
| Insert Hand | N |
| Insert Material | Carbide |
