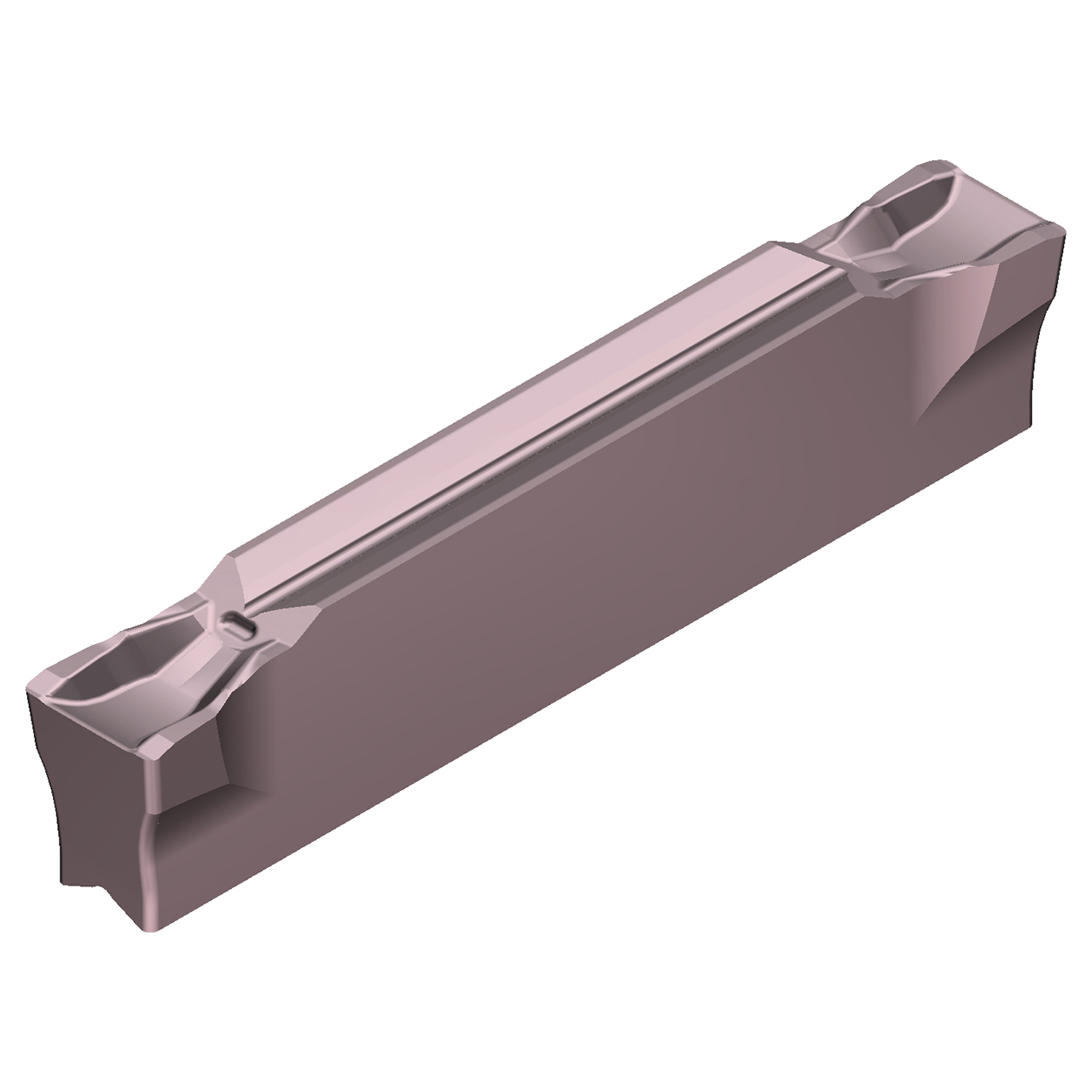

| EDP Number | 18HMALL |
| Product Code - ANSI | GCMN3002-GG-AC530U |
| Manufacturer Grade Identification | AC530U |
| Series | GND |
| Maximum Depth of Cut (Decimal Inch) | 0.7500" |
| Maximum Depth of Cut (mm) | 20.00mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Height (Decimal Inch) | 0.1496" |
| Nose Radius (Decimal Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Insert Thickness (Decimal Inch) | 0.1496" |
| Insert Thickness (mm) | 3.80mm |
| Relief Angle | 7 Degree |
| Coating | Super ZX Coat |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P, M, S |
| Primary Workpiece Material | P, M, S |
| Secondary Workpiece Material | P, M, S |
| Chip Breaker | GG |
| Insert Hand | N |
| Insert Material | Carbide |
