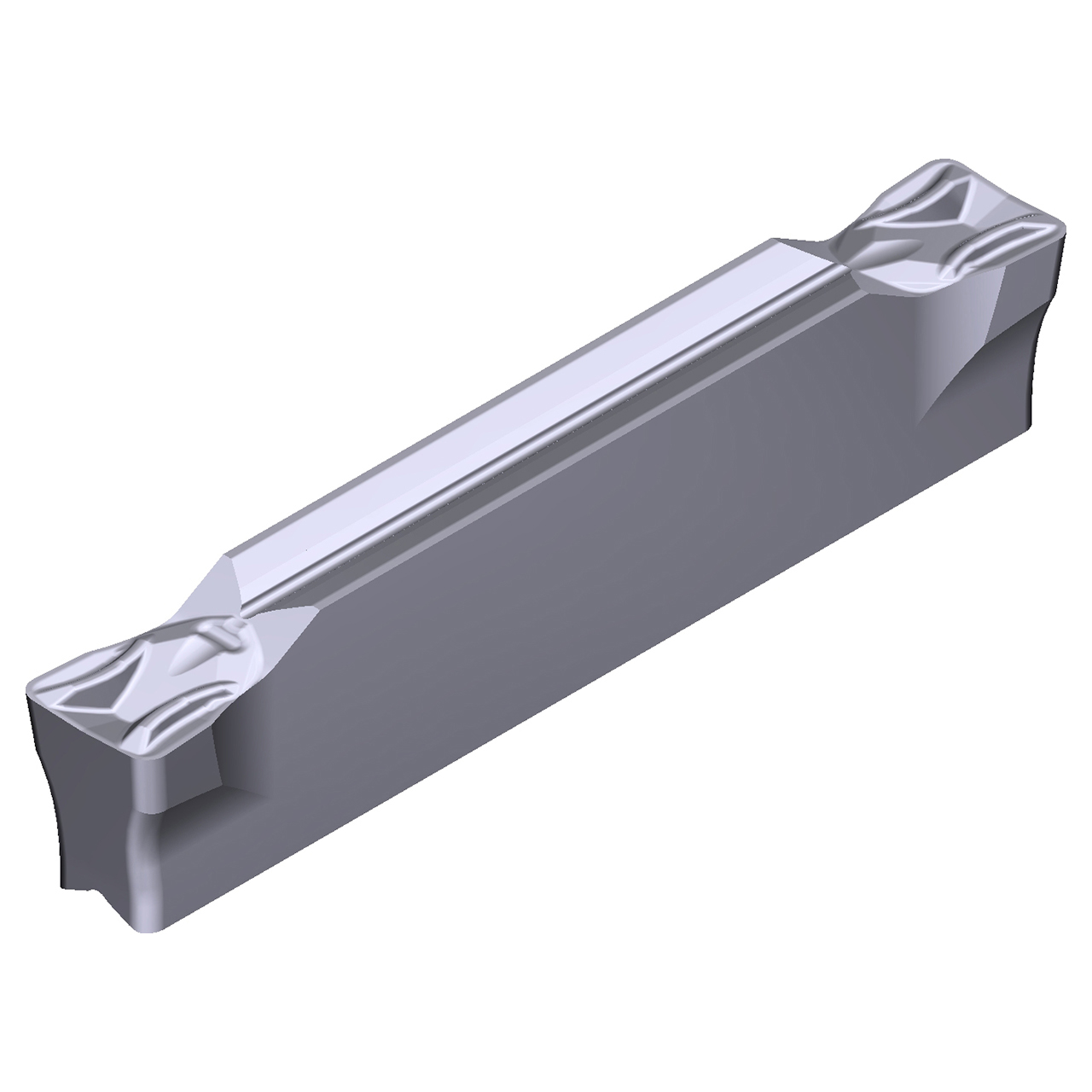

| EDP Number | 18T6ANA |
| Product Code - ANSI | GCMN8008-MG-AC5025S |
| Manufacturer Grade Identification | AC5025S |
| Series | GND |
| Maximum Depth of Cut (Decimal Inch) | 1.0000" |
| Maximum Depth of Cut (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.3150" |
| Cutting Width (mm) | 8.00mm |
| Height (Decimal Inch) | 0.2362" |
| Nose Radius (Decimal Inch) | 0.0315" |
| Nose Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.2362" |
| Insert Thickness (mm) | 6.00mm |
| Relief Angle | 7 Degree |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P, M, S |
| Primary Workpiece Material | P, M, S |
| Secondary Workpiece Material | P, M, S |
| Chip Breaker | MG |
| Insert Hand | N |
| Insert Material | Carbide |
