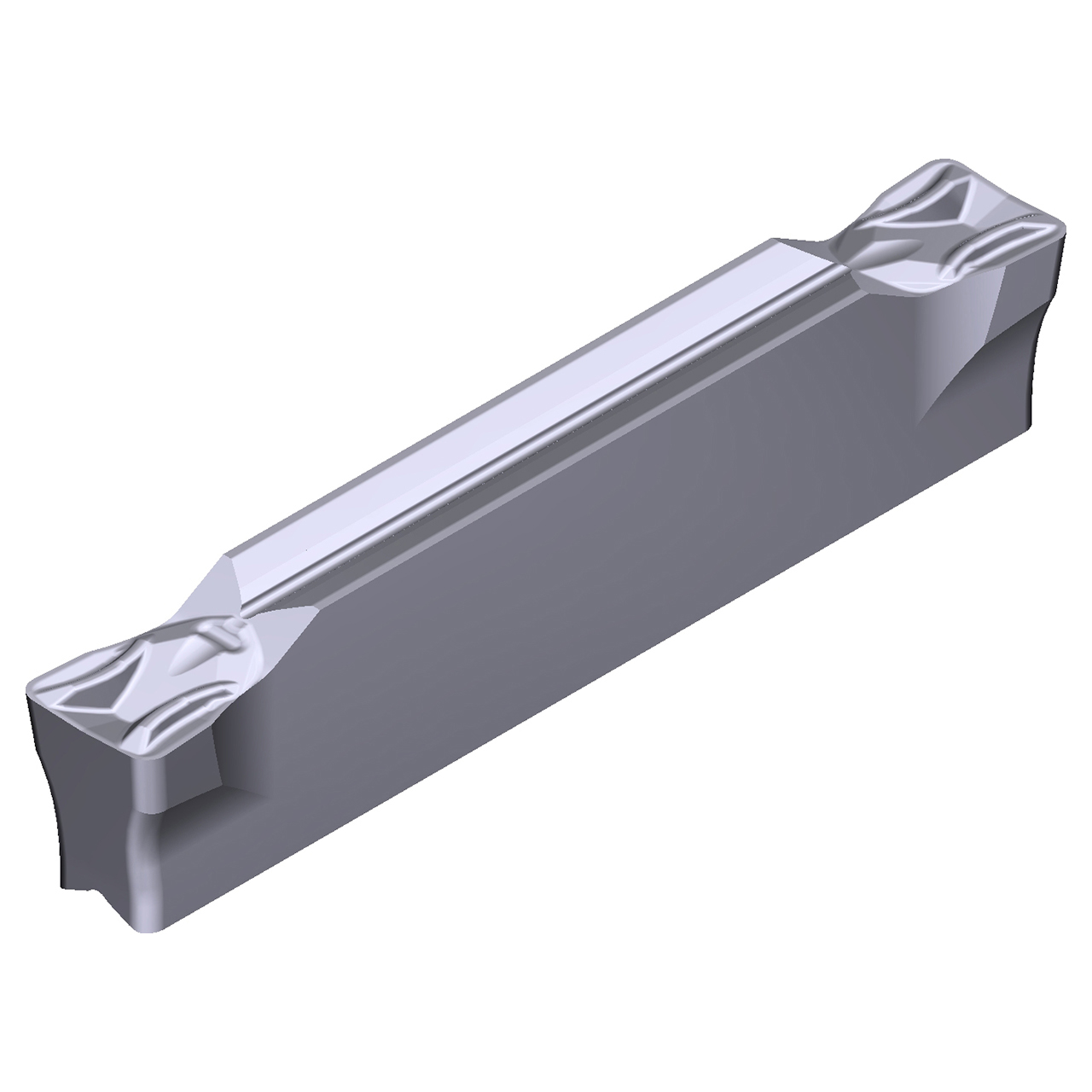

Sumitomo 18T6W16 | GCMN6250R2.0-MG-AC5025S 0.2500" Cutting Width x 0.0312" Radius x 0.1770" Thickness Absotech Coated Carbide GND Grooving Insert

$36.77 $29.42
(You save $7.35)
Brand:
Sumitomo
Material:
Carbide
Cutting Width (Inch):
1/4"
Cutting Width (Decimal Inch):
0.2500"
Cutting Width (mm):
6.35mm
Maximum Depth of Cut (Inch):
29/32"
Maximum Depth of Cut (Decimal Inch):
0.9060"
Maximum Depth of Cut (mm):
23.00mm
Manufacturer's Grade:
AC5025S
Coating:
Absotech
Insert Hand:
N
Cutting Height (Inch):
3/16"
Cutting Height (Decimal Inch):
0.1770"
Cutting Height (mm):
4.50mm
interval quantity:
1
SKU:
23173211
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 18T6W16 | GCMN6250R2.0-MG-AC5025S 0.2500" Cutting Width x 0.0312" Radius x 0.1770" Thickness Absotech Coated Carbide GND Grooving Insert

Product Specifications
EDP Number18T6W16
Product Code - ANSIGCMN6250R2.0-MG-AC5025S
Manufacturer Grade IdentificationAC5025S
SeriesGND
Maximum Depth of Cut (Decimal Inch)0.9060"
Maximum Depth of Cut (mm)23.00mm
Cutting Width (Decimal Inch)0.2500"
Cutting Width (mm)6.35mm
Height (Decimal Inch)0.1770"
Nose Radius (Decimal Inch)0.0312"
Nose Radius (mm)0.79mm
Insert Thickness (Decimal Inch)0.1770"
Insert Thickness (mm)4.50mm
Relief Angle7 Degree
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP, M, S
Primary Workpiece MaterialP, M, S
Secondary Workpiece MaterialP, M, S
Chip BreakerMG
Insert HandN
Insert MaterialCarbide
