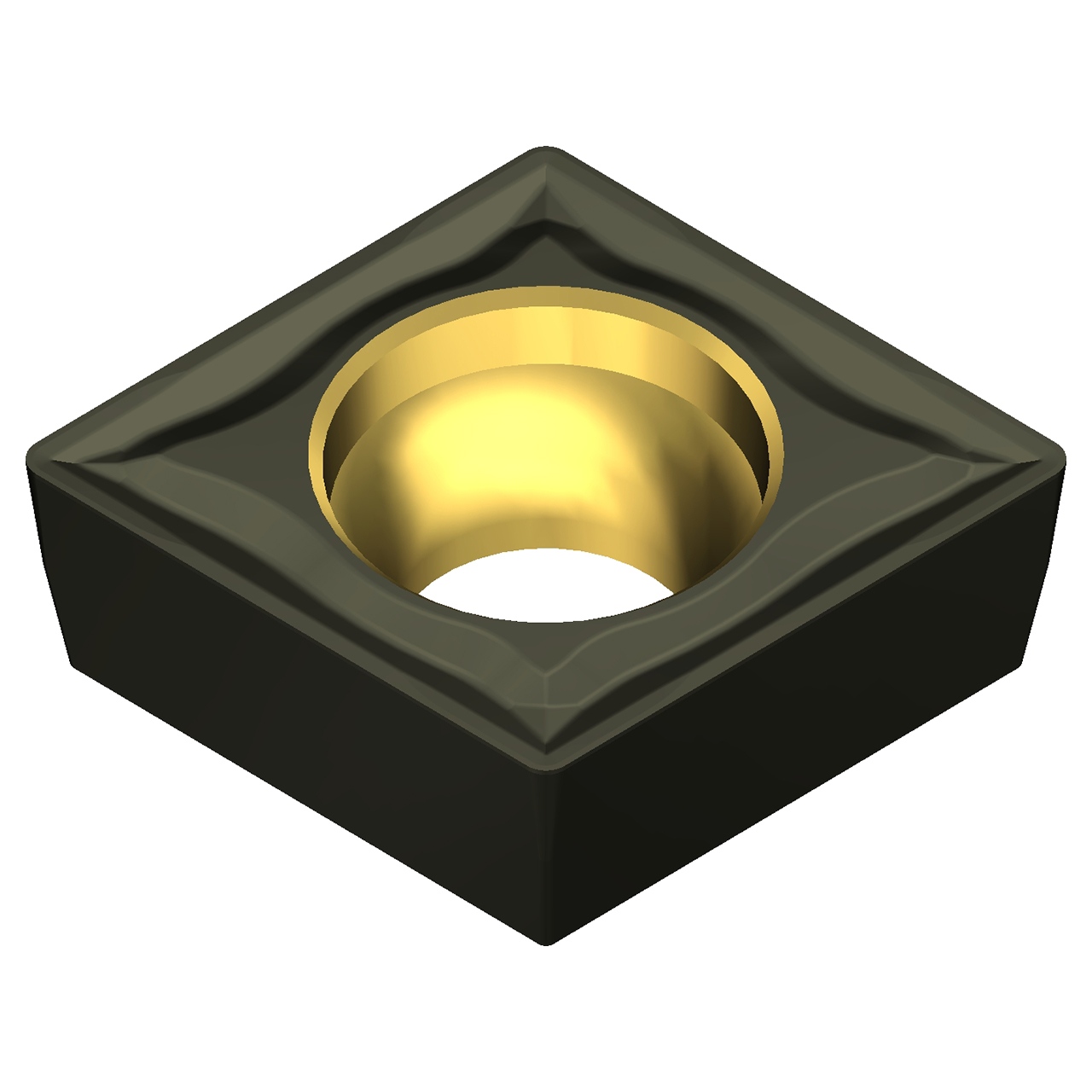

| EDP Number | 191R636 |
| Product Code-ANSI | CPMT2.51.52EMU-AC420K |
| Product Code-ISO | CPMT080208N-MU |
| Manufacturer Grade Identification | AC420K |
| Series | AC420K |
| Cutting Edge Length (Decimal Inch) | 0.3150" |
| Cutting Edge Length (mm) | 8.00mm |
| Nose Radius (Decimal Inch) | 0.0315" |
| Nose Radius (mm) | 0.80mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3126" |
| Inscribed Circle Diameter (mm) | 7.94mm |
| Hole Diameter (mm) | 3.40mm |
| Insert Thickness (Decimal Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EMU |
| Corner Angle | 80 |
| Insert Style | CPMT |
| Primary Workpiece Material | Cast Iron |
| Coating | Super FF coat |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | K20, K15, K15 |
| Insert Holding Method | Screw-On |
