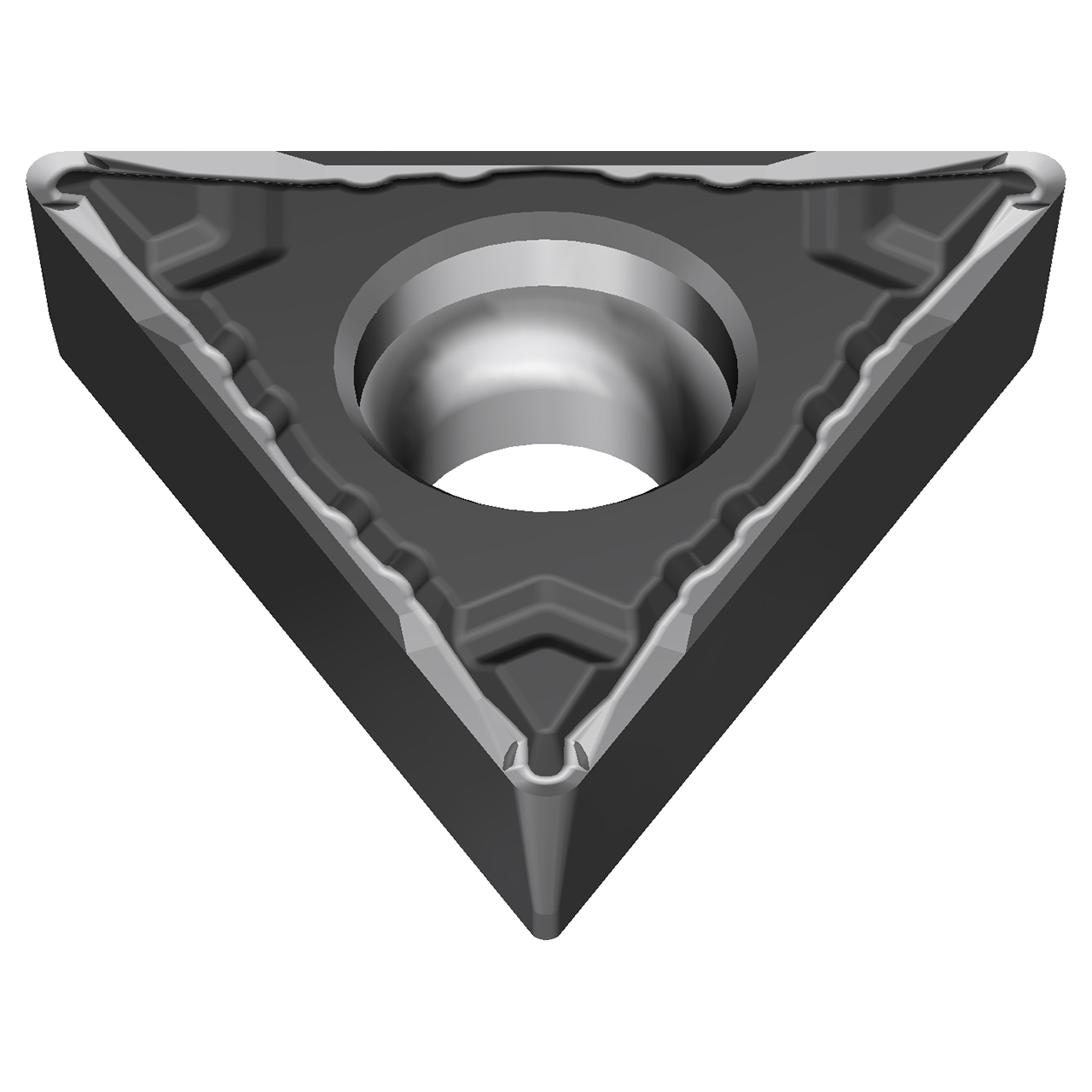

Sumitomo 196CBVU | TCMT21.52ELU-AC6030M 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert - All Industrial Tool Supply

Sumitomo 196CBVU | TCMT21.52ELU-AC6030M 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert

$8.83 $7.95
(You save $0.88)
Total Price: $79.50

This product is sold in increments of 10

Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
TCMT
Insert Size:
21.52
Material:
Carbide
Length (Inch):
7/16"
Length (Decimal Inch):
0.4331"
Length (mm):
11.00mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
AC6030M
Ships:
From California in 1-2 Days
SKU:
23174562
Weight:
0.10 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number196CBVU
Product Code-ANSITCMT21.52ELU-AC6030M
Product Code-ISOTCMT110208N-LU
Manufacturer Grade IdentificationAC6030M
SeriesAC6000M
Cutting Edge Length (Decimal Inch)0.4331"
Cutting Edge Length (mm)11.00mm
Nose Radius (Decimal Inch)0.0315"
Nose Radius (mm)0.80mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.0937"
Insert Thickness (mm)2.38mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerELU
Corner Angle60
Insert StyleTCMT
Primary Workpiece MaterialStainless Steel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationM30, M35, M30
Insert Holding MethodScrew-On
