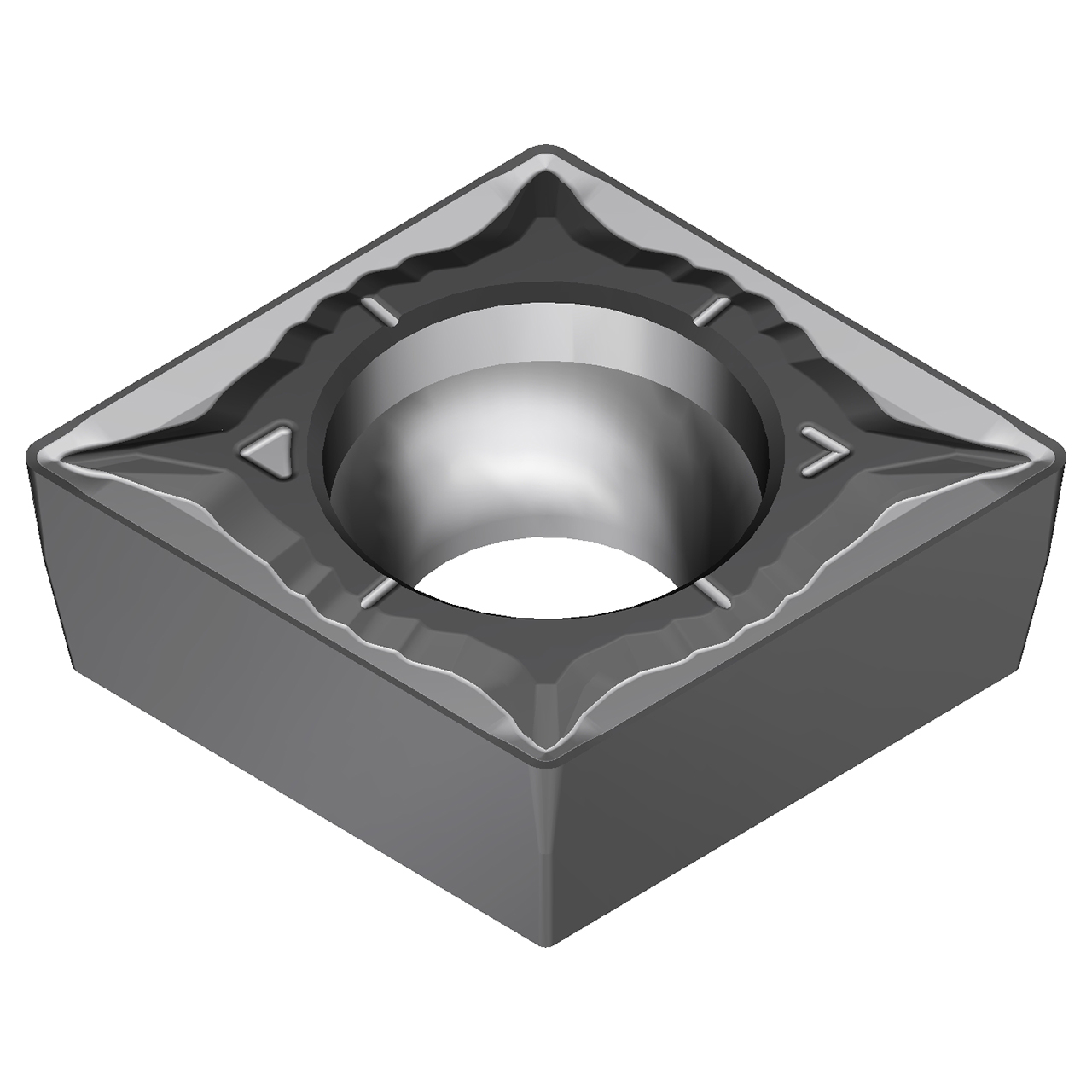

| EDP Number | 196CDCK |
| Product Code-ANSI | CCMT21.52EGU-AC6030M |
| Product Code-ISO | CCMT060208N-GU |
| Manufacturer Grade Identification | AC6030M |
| Series | AC6000M |
| Cutting Edge Length (Decimal Inch) | 0.2520" |
| Cutting Edge Length (mm) | 6.40mm |
| Nose Radius (Decimal Inch) | 0.0315" |
| Nose Radius (mm) | 0.80mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.2500" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Hole Diameter (mm) | 2.80mm |
| Insert Thickness (Decimal Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EGU |
| Corner Angle | 80 |
| Insert Style | CCMT |
| Primary Workpiece Material | Stainless Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | M30, M35, M25 |
| Insert Holding Method | Screw-On |
