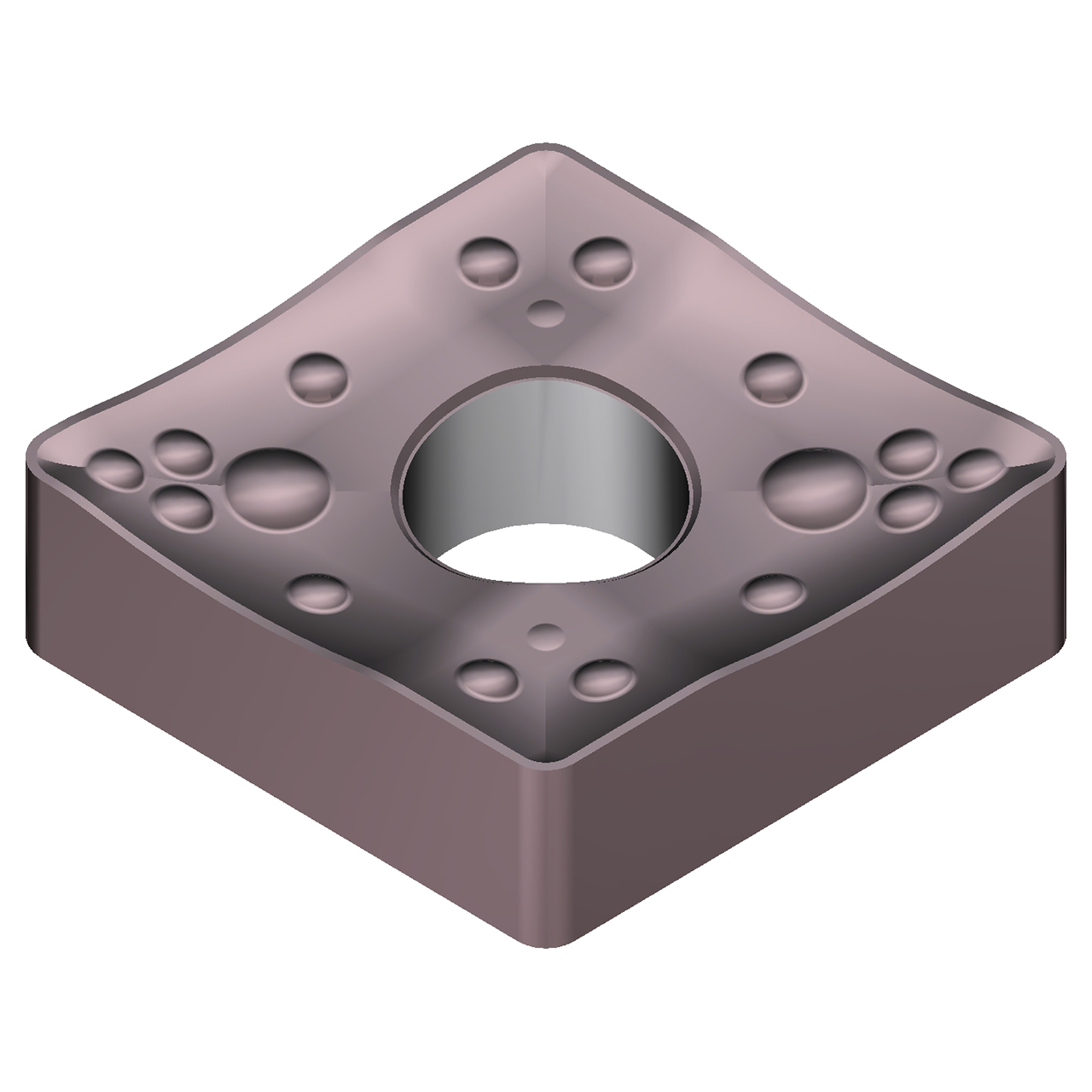

| EDP Number | 196D431 |
| Product Code-ANSI | CNMM646ENP-AC6040M |
| Product Code-ISO | CNMM190624N-MP |
| Manufacturer Grade Identification | AC6040M |
| Series | AC6000M |
| Cutting Edge Length (Decimal Inch) | 0.7598" |
| Cutting Edge Length (mm) | 19.30mm |
| Nose Radius (Decimal Inch) | 0.0945" |
| Nose Radius (mm) | 2.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.7500" |
| Inscribed Circle Diameter (mm) | 19.05mm |
| Hole Diameter (mm) | 7.94mm |
| Insert Thickness (Decimal Inch) | 0.2500" |
| Insert Thickness (mm) | 6.35mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EMP |
| Corner Angle | 80 |
| Insert Style | CNMM |
| Primary Workpiece Material | Stainless Steel |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | M40, M30, M30 |
| Insert Holding Method | Pin & Clamp |
