| EDP Number | 196DCHR |

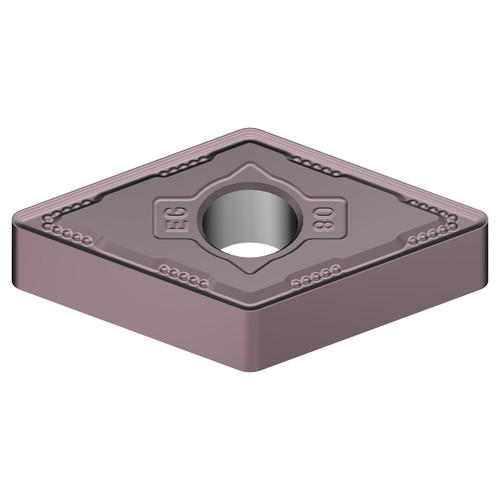

| Product Code-ANSI | DNMG441EEG-AC6040M |
| Product Code-ISO | DNMG150604N-EG |
| Manufacturer Grade Identification | AC6040M |
| Series | AC6000M |
| Cutting Edge Length (Decimal Inch) | 0.6102" |
| Cutting Edge Length (mm) | 15.50mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.5000" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Hole Diameter (mm) | 5.16mm |
| Insert Thickness (Decimal Inch) | 0.2500" |
| Insert Thickness (mm) | 6.35mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EEG |
| Corner Angle | 55 |
| Insert Style | DNMG |
| Primary Workpiece Material | Stainless Steel |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | M40, M30, M30 |
| Insert Holding Method | Pin & Clamp |
