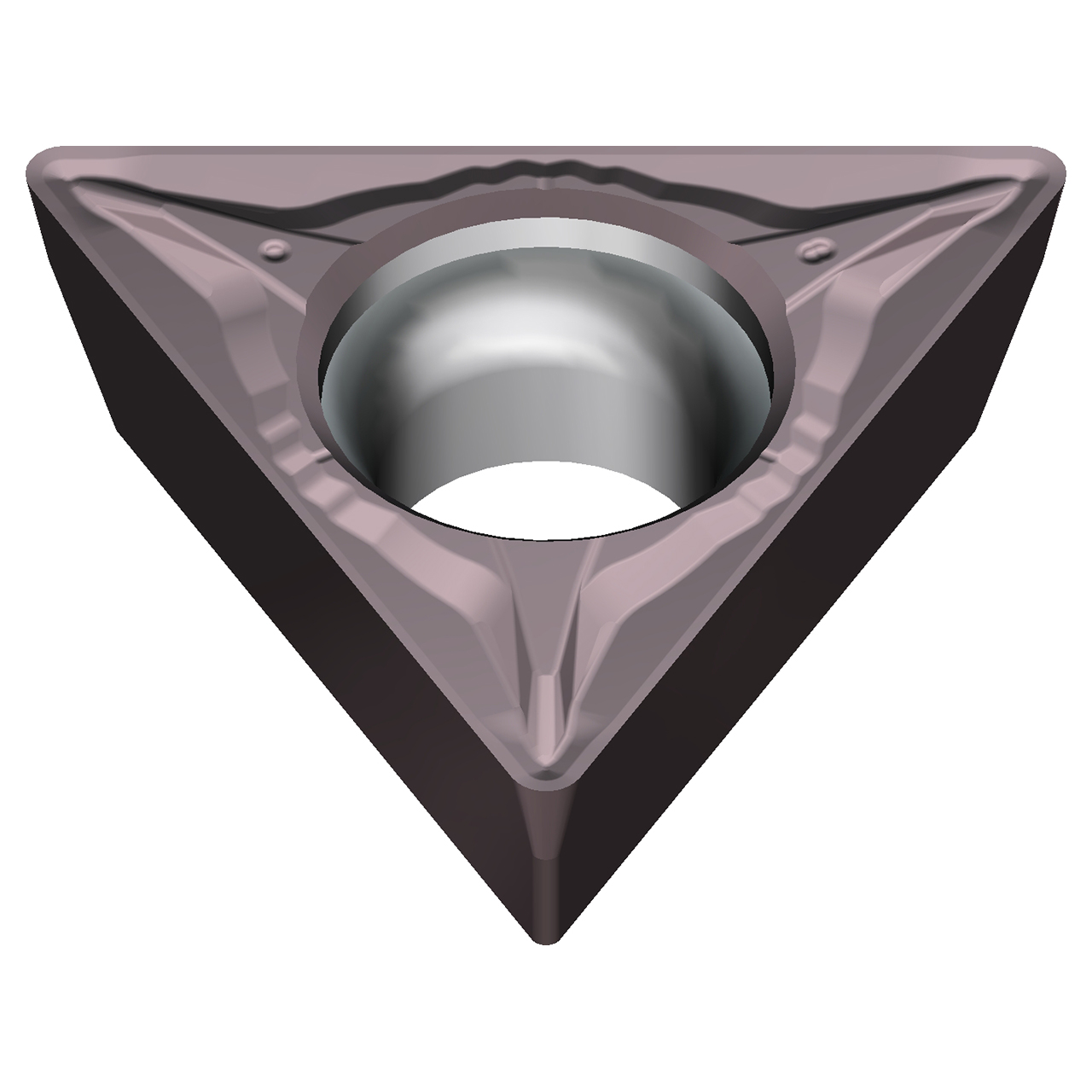

| EDP Number | 196DDDJ |
| Product Code-ANSI | TPMT331EGU-AC6040M |
| Product Code-ISO | TPMT160404N-GU |
| Manufacturer Grade Identification | AC6040M |
| Series | AC6000M |
| Cutting Edge Length (Decimal Inch) | 0.6496" |
| Cutting Edge Length (mm) | 16.50mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Hole Diameter (mm) | 4.40mm |
| Insert Thickness (Decimal Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EGU |
| Corner Angle | 60 |
| Insert Style | TPMT |
| Primary Workpiece Material | Stainless Steel |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | M40, M30, M25 |
| Insert Holding Method | Screw-On |
