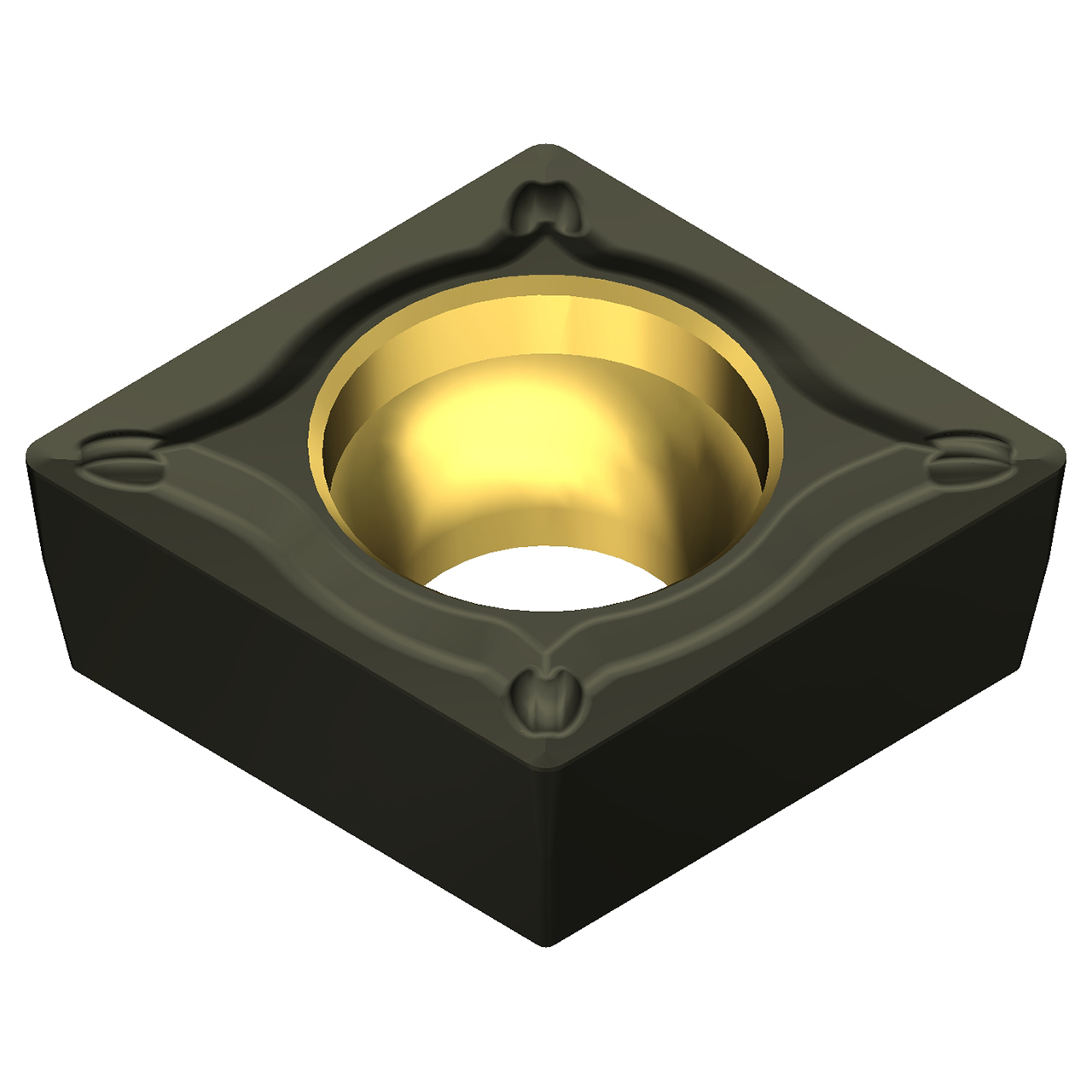

| EDP Number | 19T2BPE |
| Product Code-ANSI | CCMT32.51ESU-AC4015K |
| Product Code-ISO | CCMT09T304N-SU |
| Manufacturer Grade Identification | AC4015K |
| Series | AC4015K |
| Cutting Edge Length (Decimal Inch) | 0.3819" |
| Cutting Edge Length (mm) | 9.70mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Hole Diameter (mm) | 4.40mm |
| Insert Thickness (Decimal Inch) | 0.1563" |
| Insert Thickness (mm) | 3.97mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | ESU |
| Corner Angle | 80 |
| Insert Style | CCMT |
| Primary Workpiece Material | Cast Iron |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | K15 |
| Insert Holding Method | Screw-On |
