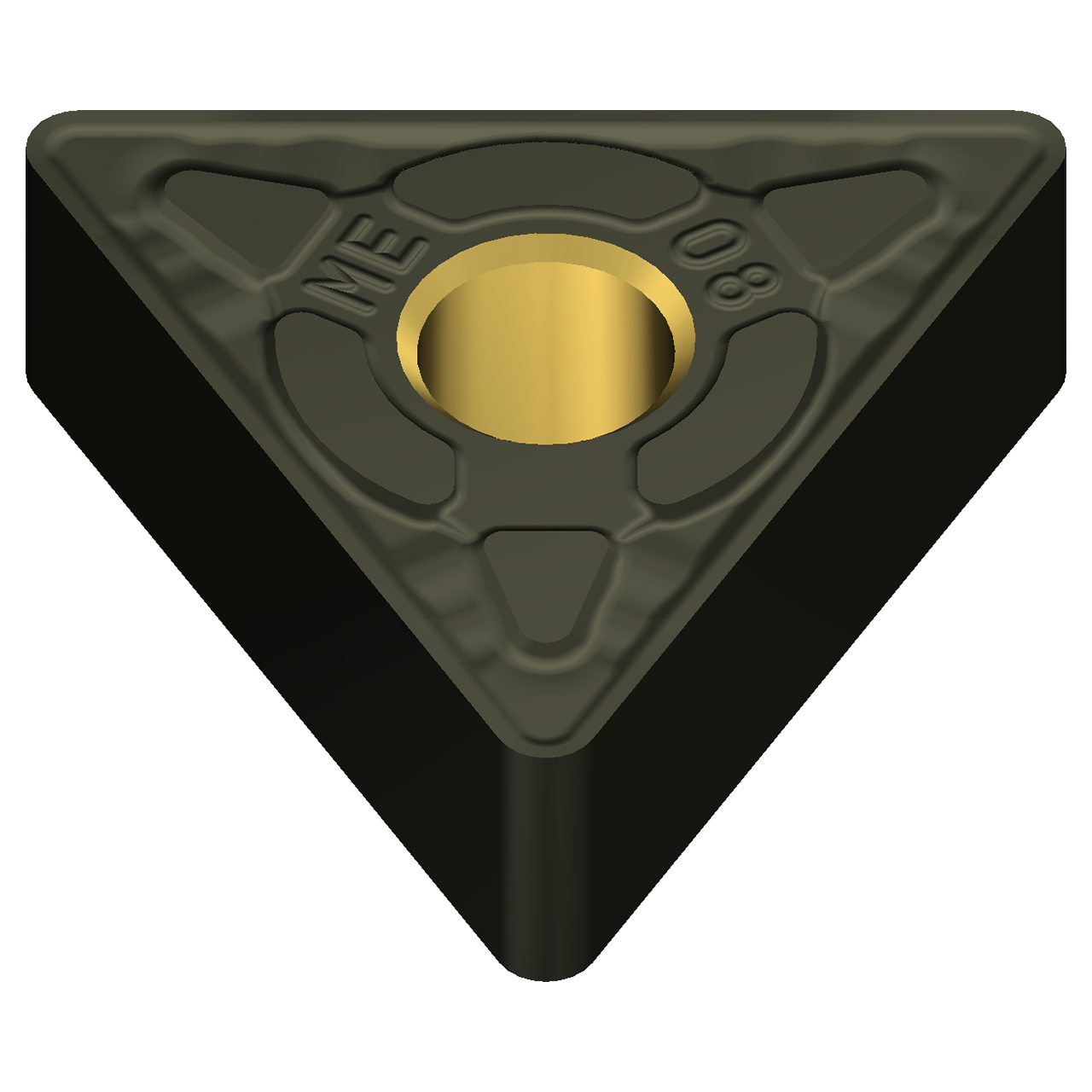

| EDP Number | 19T2CFE |
| Product Code-ANSI | TNMG434EME-AC4015K |
| Product Code-ISO | TNMG220416N-ME |
| Manufacturer Grade Identification | AC4015K |
| Series | AC4015K |
| Cutting Edge Length (Decimal Inch) | 0.8661" |
| Cutting Edge Length (mm) | 22.00mm |
| Nose Radius (Decimal Inch) | 0.0630" |
| Nose Radius (mm) | 1.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.5000" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Hole Diameter (mm) | 5.16mm |
| Insert Thickness (Decimal Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EME |
| Corner Angle | 60 |
| Insert Style | TNMG |
| Primary Workpiece Material | Cast Iron |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | K15 |
| Insert Holding Method | Pin & Clamp |
