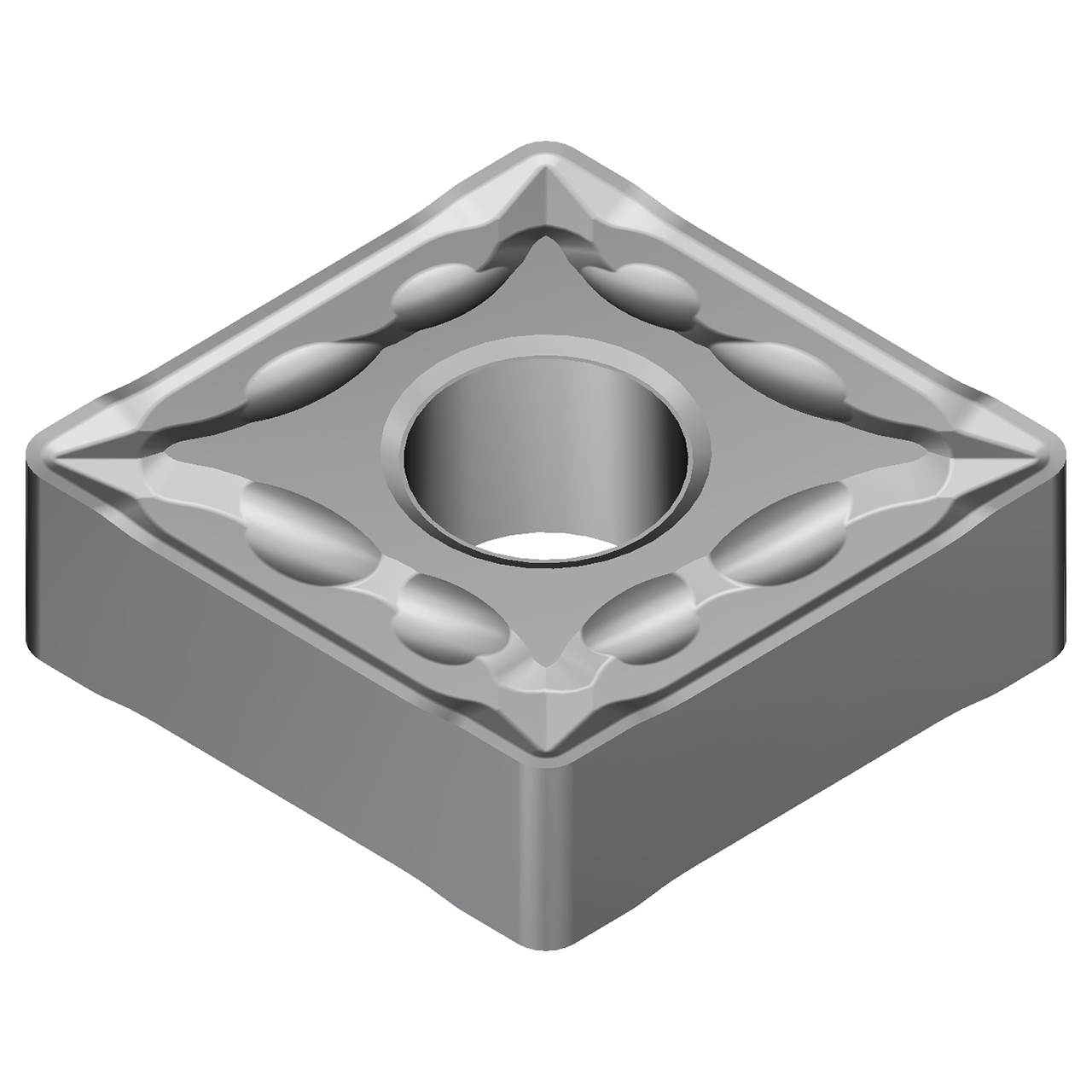

Sumitomo 19T3AFN | CNMG643EMU-AC8035P 0.7500" Circle Diameter x 7.94mm Hole Diameter x 0.0472" Radius Absotech Coated Carbide Turning Insert

$22.24 $20.02
(You save $2.22)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CNMG
Insert Size:
643
Material:
Carbide
Length (Inch):
3/4"
Length (Decimal Inch):
0.7598"
Length (mm):
19.30mm
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0472"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
AC8035P
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23180149
Weight:
0.50 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number19T3AFN
Product Code-ANSICNMG643EMU-AC8035P
Product Code-ISOCNMG190612N-MU
Manufacturer Grade IdentificationAC8035P
SeriesAC8000P
Cutting Edge Length (Decimal Inch)0.7598"
Cutting Edge Length (mm)19.30mm
Nose Radius (Decimal Inch)0.0472"
Nose Radius (mm)1.20mm
Inscribed Circle Diameter (Decimal Inch)0.7500"
Inscribed Circle Diameter (mm)19.05mm
Hole Diameter (mm)7.94mm
Insert Thickness (Decimal Inch)0.2500"
Insert Thickness (mm)6.35mm
Relief Angle0 Degree
Rake AngleNegative
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerEMU
Corner Angle80
Insert StyleCNMG
Primary Workpiece MaterialSteel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP35, P25, P40
Insert Holding MethodPin & Clamp
