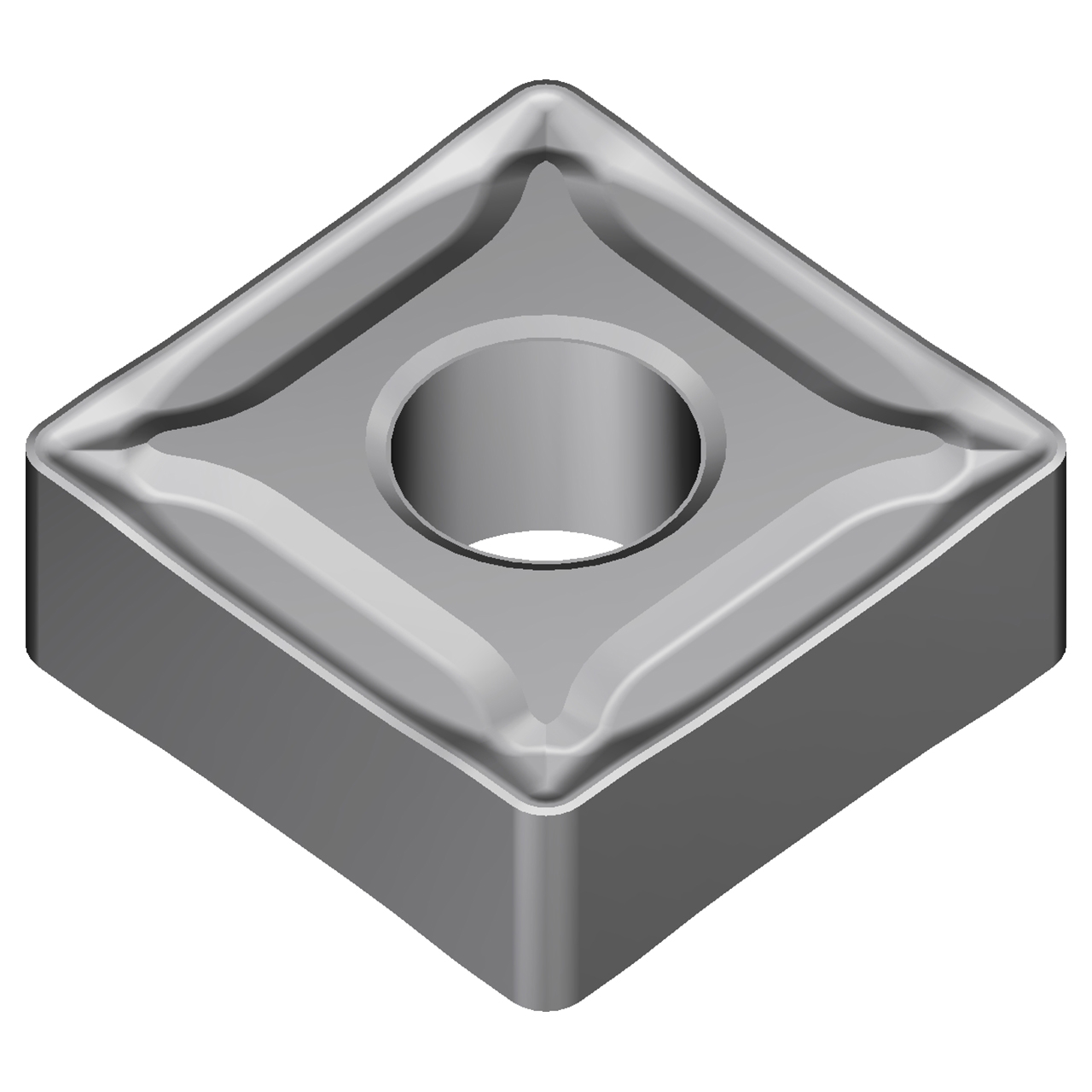

Sumitomo 19T3ANQ | SNMG432EMX-AC8035P 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert - All Industrial Tool Supply

Sumitomo 19T3ANQ | SNMG432EMX-AC8035P 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert

$10.24 $9.22
(You save $1.02)
Total Price: $92.20

This product is sold in increments of 10

Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
SNMG
Insert Size:
432
Material:
Carbide
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
AC8035P
Ships:
From California in 1-2 Days
SKU:
23180184
Weight:
0.25 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number19T3ANQ
Product Code-ANSISNMG432EMX-AC8035P
Product Code-ISOSNMG120408N-MX
Manufacturer Grade IdentificationAC8035P
SeriesAC8000P
Cutting Edge Length (Decimal Inch)0.5000"
Cutting Edge Length (mm)12.70mm
Nose Radius (Decimal Inch)0.0315"
Nose Radius (mm)0.80mm
Inscribed Circle Diameter (Decimal Inch)0.5000"
Inscribed Circle Diameter (mm)12.70mm
Hole Diameter (mm)5.16mm
Insert Thickness (Decimal Inch)0.1874"
Insert Thickness (mm)4.76mm
Relief Angle0 Degree
Rake AngleNegative
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerEMX
Corner Angle90
Insert StyleSNMG
Primary Workpiece MaterialSteel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP35, P25, P40
Insert Holding MethodPin & Clamp
