| EDP Number | 19T3BXA |

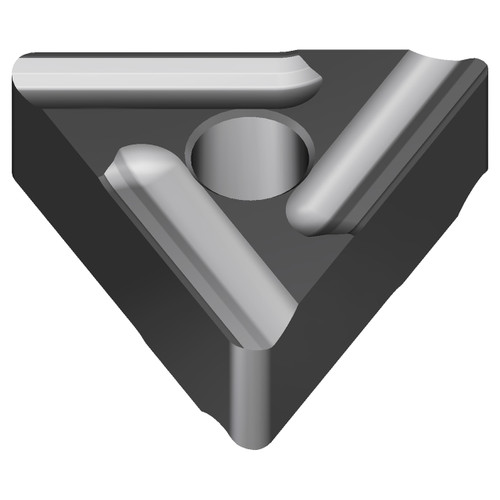

| Product Code-ANSI | TNML331EHM-AC8035P |
| Product Code-ISO | TNMG160404L-HM |
| Manufacturer Grade Identification | AC8035P |
| Series | AC8000P |
| Cutting Edge Length (Decimal Inch) | 0.6496" |
| Cutting Edge Length (mm) | 16.50mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Hole Diameter (mm) | 3.81mm |
| Insert Thickness (Decimal Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | LHM |
| Corner Angle | 60 |
| Insert Style | TNML |
| Primary Workpiece Material | Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | P35, P25, P40 |
| Insert Holding Method | Pin & Clamp |
