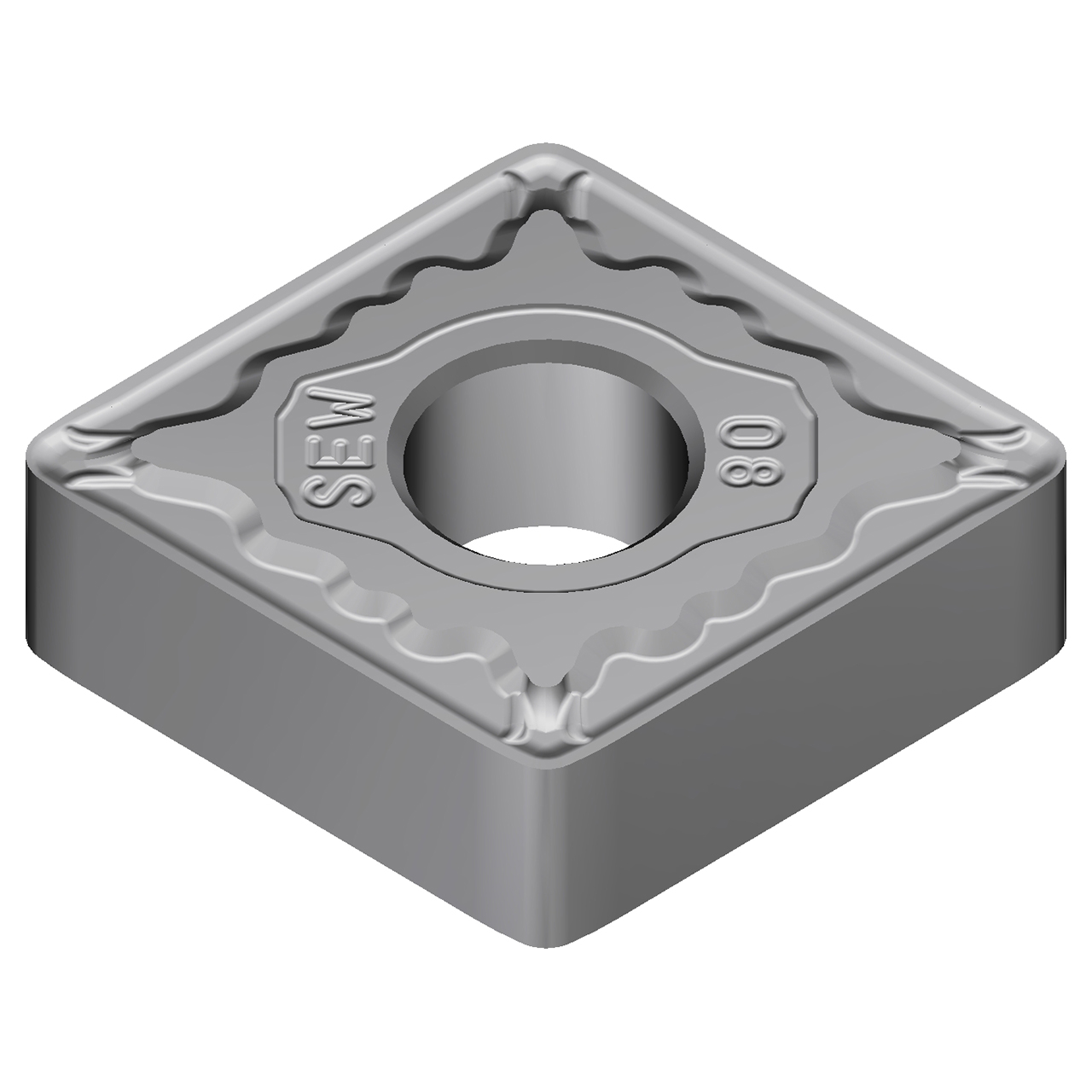

Product Specifications
| EDP Number | 19T3CVR |
| Product Code-ANSI | CNMG332ESEW-AC8035P |
| Product Code-ISO | CNMG090408N-SEW |
| Manufacturer Grade Identification | AC8035P |
| Series | AC8000P |
| Cutting Edge Length (Decimal Inch) | 0.3819" |
| Cutting Edge Length (mm) | 9.70mm |
| Nose Radius (Decimal Inch) | 0.0315" |
| Nose Radius (mm) | 0.80mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Hole Diameter (mm) | 3.81mm |
| Insert Thickness (Decimal Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | ESEW |
| Corner Angle | 80 |
| Insert Style | CNMG |
| Primary Workpiece Material | Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | P35, P25, P40 |
| Insert Holding Method | Pin & Clamp |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
CNMG
Insert Size:
332
Material:
Carbide
Length (Inch):
3/8"
Length (Decimal Inch):
0.3819"
Length (mm):
9.70mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
AC8035P
interval quantity:
10
Ships:
From California in 1-2 Days
