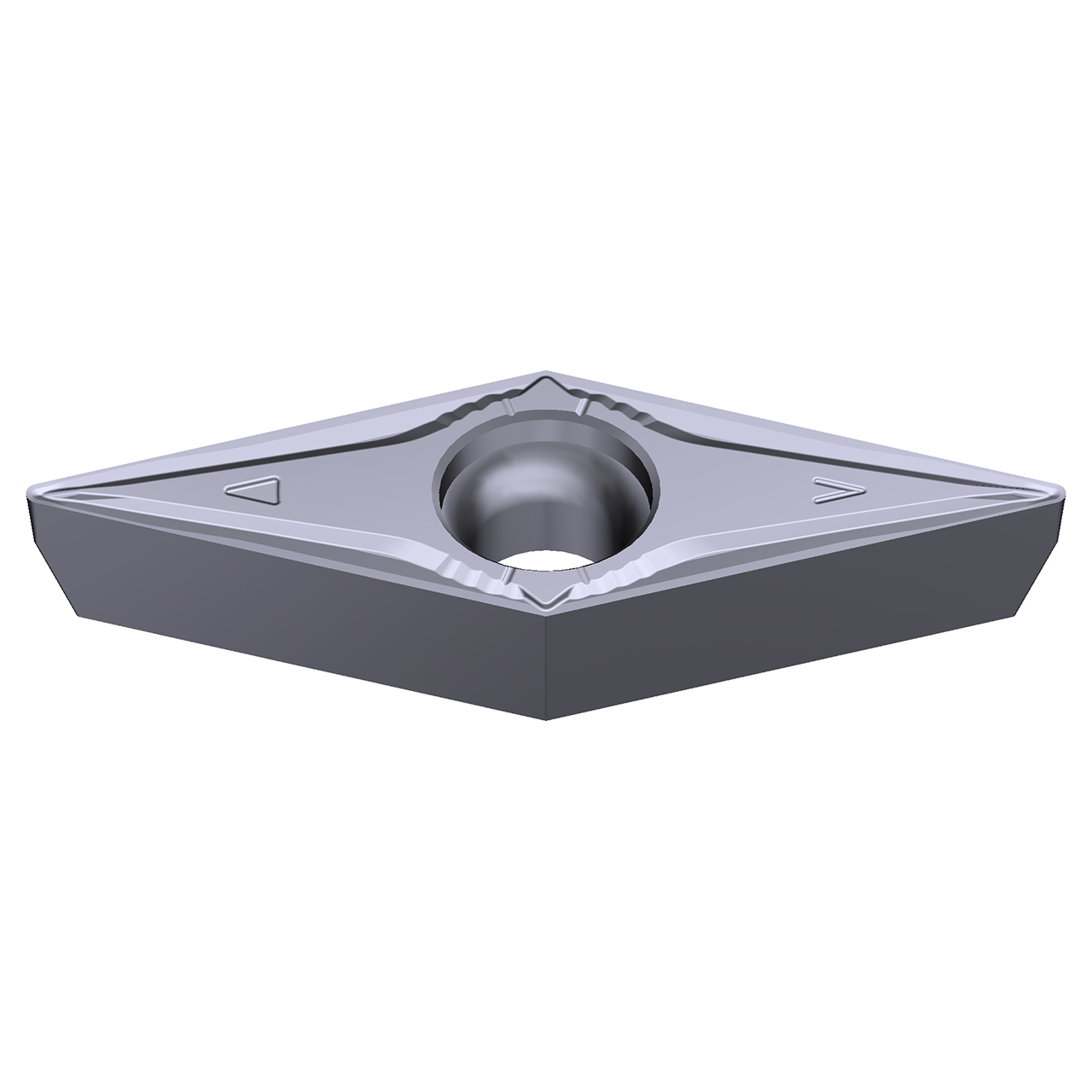

| EDP Number | 19T5DDS |
| Product Code-ANSI | VCMT332EGU-AC5015S |
| Product Code-ISO | VCMT160408N-GU |
| Manufacturer Grade Identification | AC5015S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.6535" |
| Cutting Edge Length (mm) | 16.60mm |
| Nose Radius (Decimal Inch) | 0.0315" |
| Nose Radius (mm) | 0.80mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EGU |
| Corner Angle | 35 |
| Insert Style | VCMT |
| Secondary Workpiece Material | Stainless Steel |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S15, S10, S20 |
| Insert Holding Method | Screw-On |
