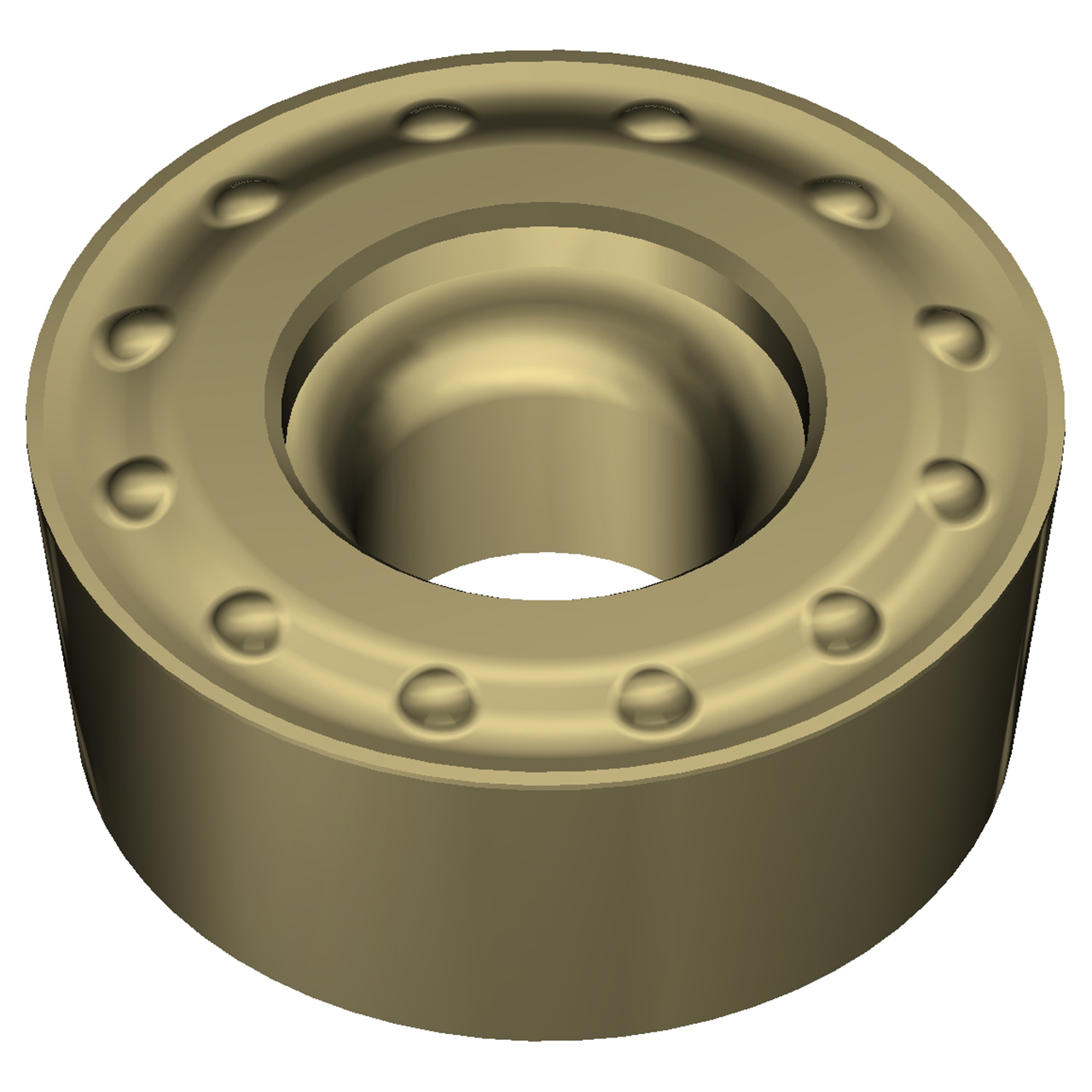

| EDP Number | 19W1BXU |
| Product Code-ANSI | RCMT250700-AC8020P |
| Product Code-ISO | RCMT2507M0N-RX |
| Manufacturer Grade Identification | AC8020P |
| Series | AC8000P |
| Cutting Edge Length (Decimal Inch) | 0.9843" |
| Cutting Edge Length (mm) | 25.00mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.9843" |
| Inscribed Circle Diameter (mm) | 25.00mm |
| Hole Diameter (mm) | 7.60mm |
| Insert Thickness (Decimal Inch) | 0.3126" |
| Insert Thickness (mm) | 7.94mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | ERX |
| Insert Style | RCMT |
| Secondary Workpiece Material | Steel |
| Primary Workpiece Material | Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | P20 |
| Insert Holding Method | Screw-On |
