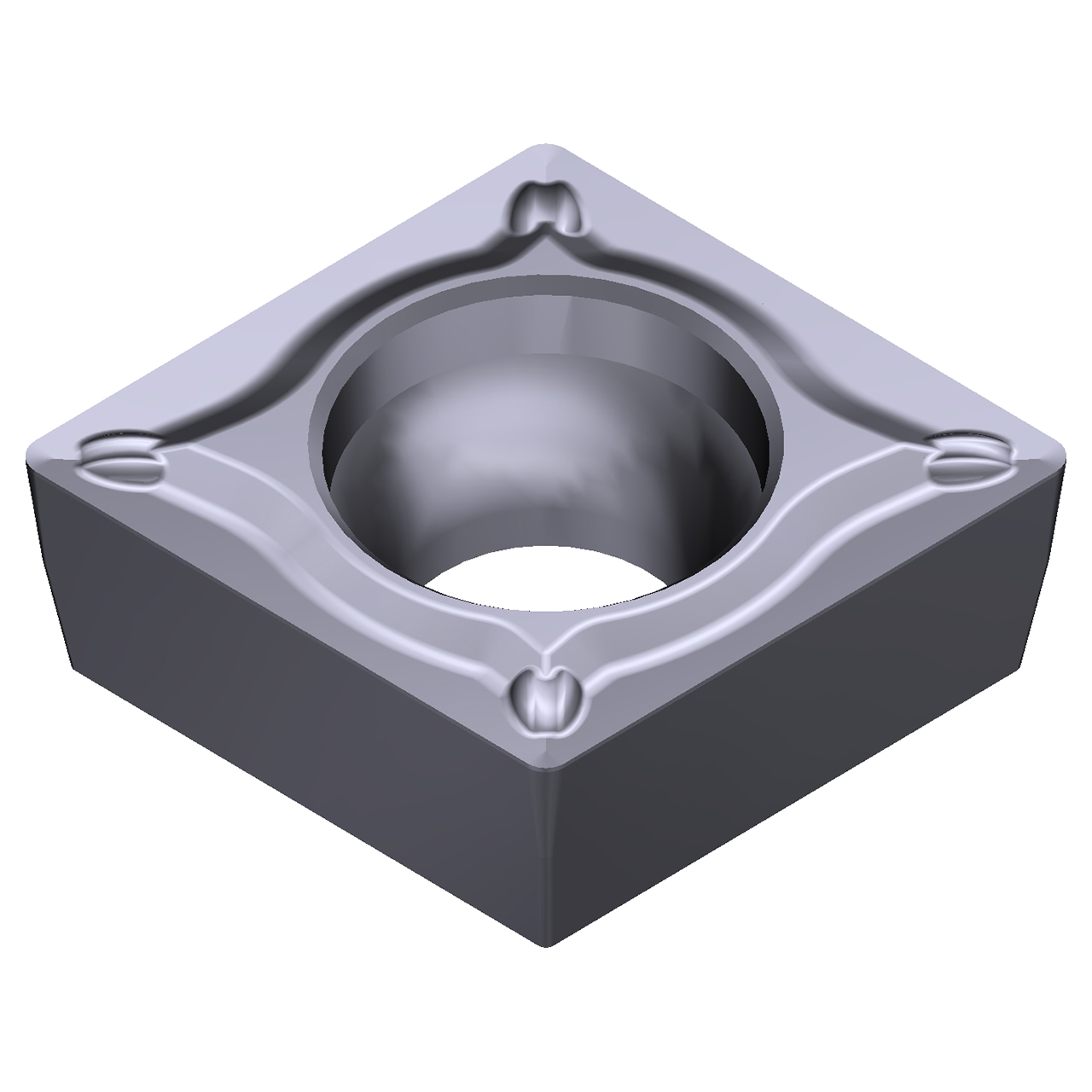

Sumitomo 19W2W33 | CPMT21.51ESU-AC5005S 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

$6.74 $6.07
(You save $0.67)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CPMT
Insert Size:
21.51
Material:
Carbide
Length (Inch):
1/4"
Length (Decimal Inch):
0.2520"
Length (mm):
6.40mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC5005S
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23183293
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Sumitomo 19W2W33 | CPMT21.51ESU-AC5005S 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number19W2W33
Product Code-ANSICPMT21.51ESU-AC5005S
Product Code-ISOCPMT060204N-SU
Manufacturer Grade IdentificationAC5005S
SeriesAC5000S
Cutting Edge Length (Decimal Inch)0.2520"
Cutting Edge Length (mm)6.40mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.0937"
Insert Thickness (mm)2.38mm
Relief Angle11 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerESU
Corner Angle80
Insert StyleCPMT
Secondary Workpiece MaterialHeat Resistant Alloy
Primary Workpiece MaterialHeat Resistant Alloy
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationS05
Insert Holding MethodScrew-On
