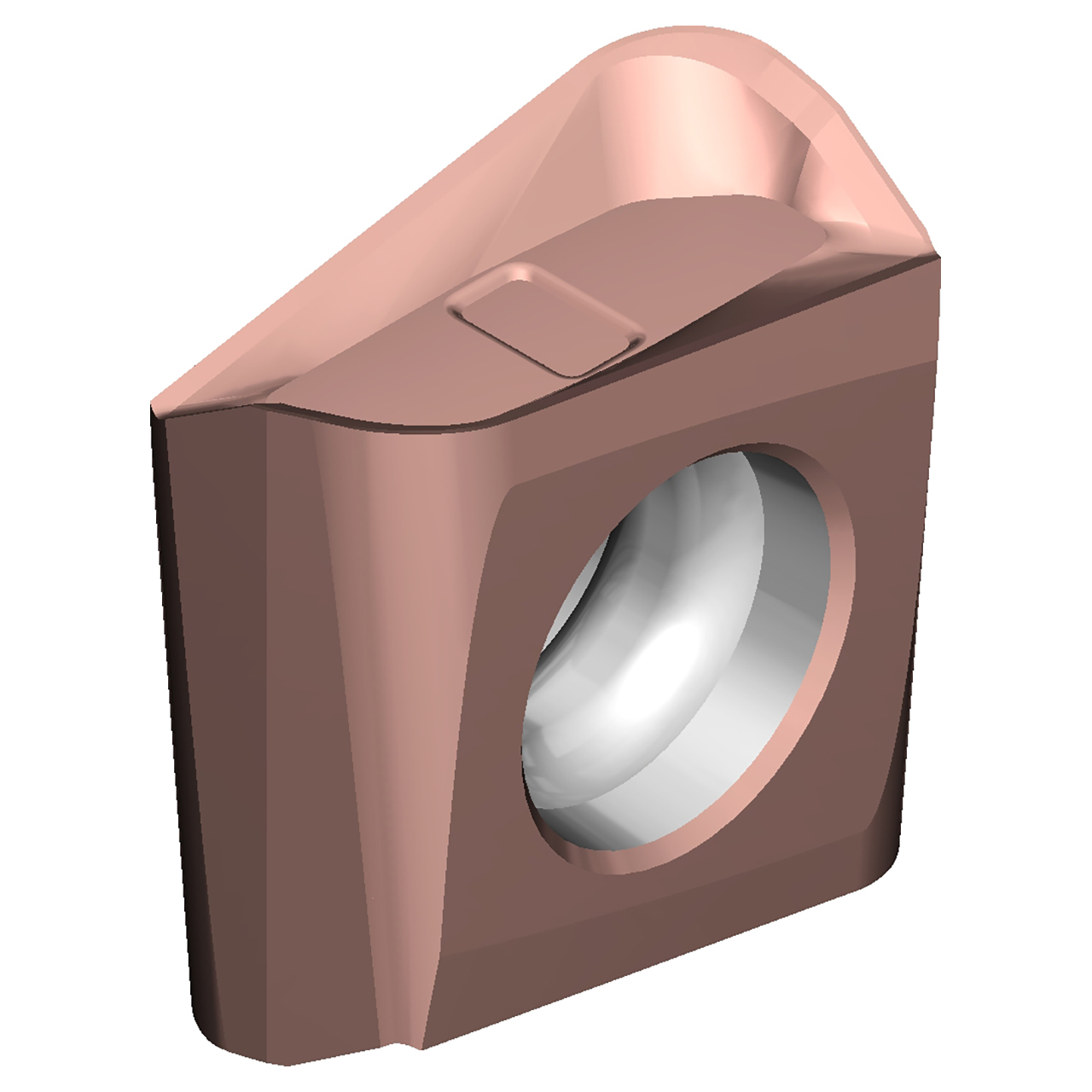

| EDP Number | 1P4W010 |
| Product Code-ANSI | LNEX080412PNER-G-ACM300 |
| Manufacturer Grade Identification | ACM300 |
| Series | TSX |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Edge Length (Decimal Length) | 0.3386" |
| Cutting Edge Length (mm) | 8.60mm |
| Nose Radius (Decimal Inch) | 0.0472" |
| Nose Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.3169" |
| Insert Thickness (mm) | 8.05mm |
| Coating | ACM300 |
| Coating Process | PVD |
| Insert Style | LNEX |
| Insert Side | Double |
| Insert Size | 080412 |
| Chip Breaker | G |
| Tolerance Class | E |
| Insert Hand | R |
| Insert Material | Carbide |
