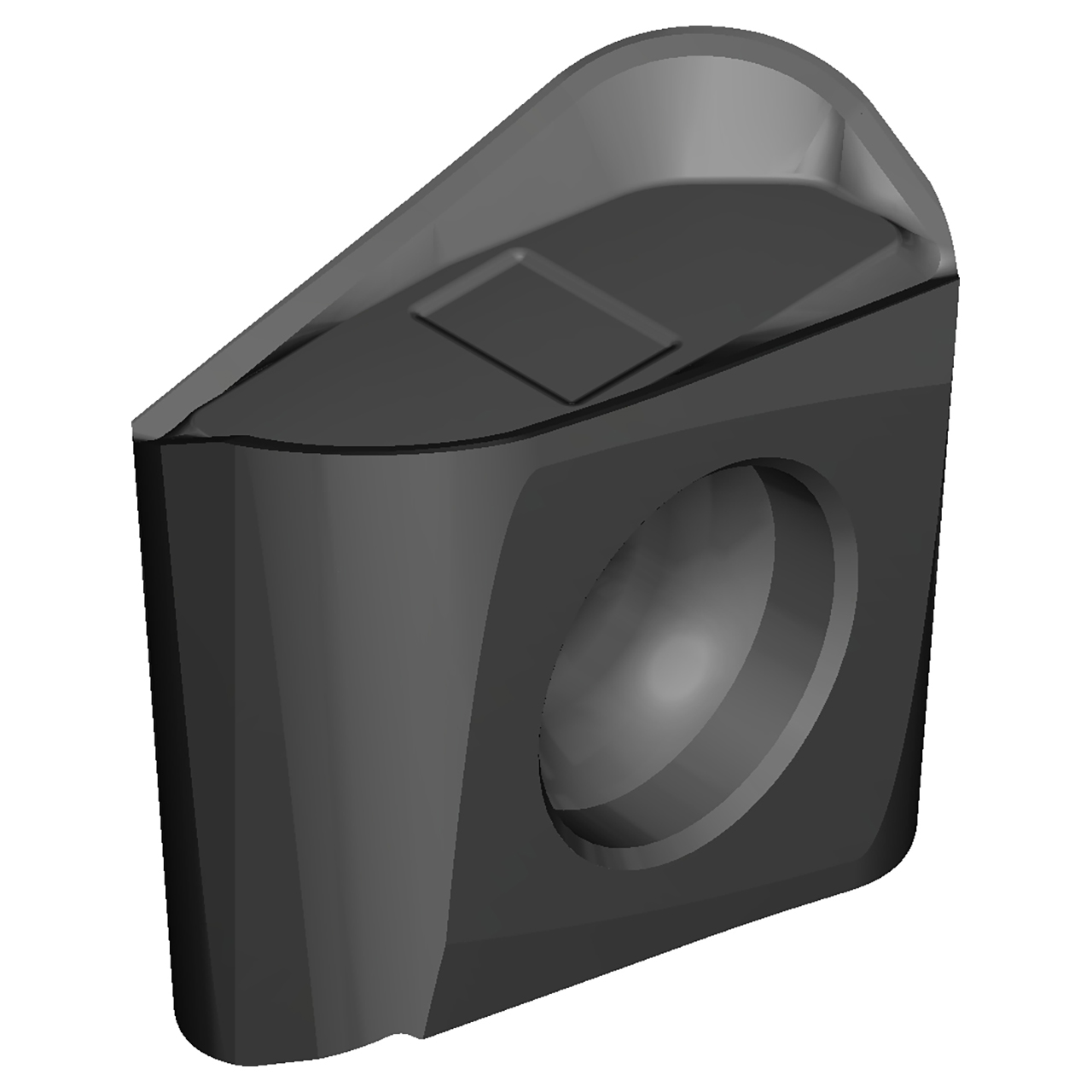

Sumitomo 1PHC018| LNEX130616PNER-H-ACK200 12.00mm Maximum Depth Cut x 1.60mm Radius x 10.80mm Thickness Carbide ACK200 Coated TSX Milling Insert

$18.46 $16.61
(You save $1.85)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
LNEX
Insert Size:
130616
Material:
Carbide
Manufacturer's Grade:
ACK200
Coating:
ACK200
Width (Inch):
1/2"
Width (Decimal Inch):
0.5118"
Width (mm):
13.00mm
Thickness (Inch):
7/16"
Thickness (Decimal Inch):
0.4252"
Thickness (mm):
10.80mm
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23184519
Weight:
0.50 LBS
Shipping:
Free Shipping
Sumitomo 1PHC018| LNEX130616PNER-H-ACK200 12.00mm Maximum Depth Cut x 1.60mm Radius x 10.80mm Thickness Carbide ACK200 Coated TSX Milling Insert

Product Specifications
EDP Number1PHC018
Product Code-ANSILNEX130616PNER-H-ACK200
Manufacturer Grade IdentificationACK200
SeriesTSX
Maximum Depth of Cut (mm)12.00mm
Cutting Edge Length (Decimal Length)0.5118"
Cutting Edge Length (mm)13.00mm
Nose Radius (Decimal Inch)0.0630"
Nose Radius (mm)1.60mm
Insert Thickness (Decimal Inch)0.4252"
Insert Thickness (mm)10.80mm
CoatingACK200
Coating ProcessCVD
Insert StyleLNEX
Insert SideDouble
Insert Size130616
Chip BreakerH
Tolerance ClassE
Insert HandR
Insert MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Sumitomo
Insert Style:
LNEX
Insert Size:
130616
Material:
Carbide
Manufacturer's Grade:
ACK200
Coating:
ACK200
Width (Inch):
1/2"
Width (Decimal Inch):
0.5118"
Width (mm):
13.00mm
Thickness (Inch):
7/16"
Thickness (Decimal Inch):
0.4252"
Thickness (mm):
10.80mm
interval quantity:
10
Ships:
From California in 1-2 Days
