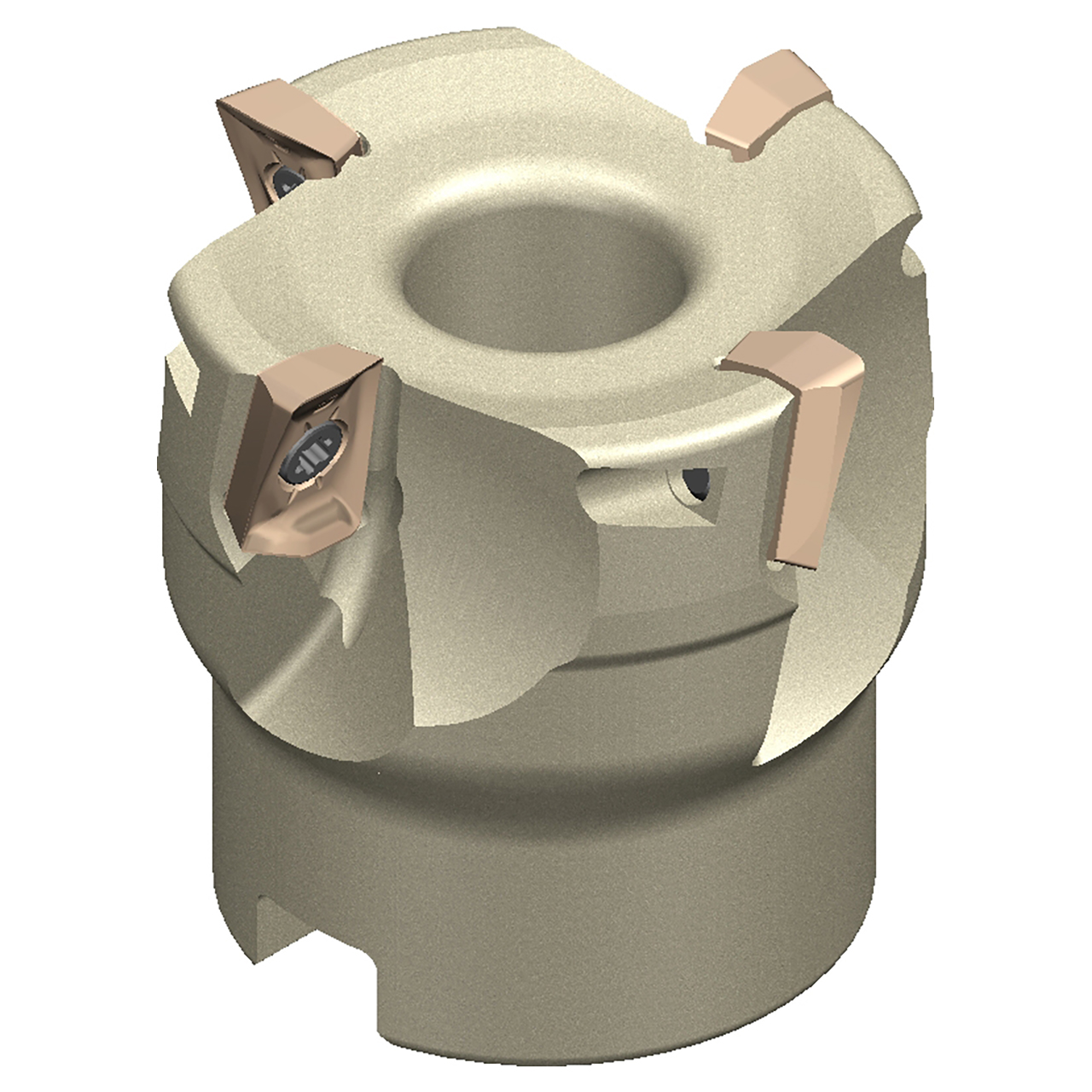

Sumitomo 2200WNA | WEZ22500R08 2.5000" Diameter x 0.3940" Depth of Cut x 1.7500" Overall Height WEZ Indexable Square-Shoulder End Mill

$447.75 $402.98
(You save $44.77)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Cutting Diameter (Inch):
2-1/2"
Cutting Diameter (Decimal Inch):
2.5000"
Cutting Diameter (mm):
63.50mm
Series:
WEZ
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
SKU:
23185818
Weight:
1.21 LBS
Shipping:
Free Shipping
Sumitomo 2200WNA | WEZ22500R08 2.5000" Diameter x 0.3940" Depth of Cut x 1.7500" Overall Height WEZ Indexable Square-Shoulder End Mill

Product Specifications
EDP Number2200WNA
Product Code-ANSIWEZ22500R08
Maximum Depth of Cut (Decimal Inch)0.3940"
Cutting Diameter (Decimal Inch)2.5000"
Arbor Diameter (Decimal Inch)1.0000"
Overall Height (Decimal Inch)1.7500"
Number of Inserts8
HandR
Insert CompatibilityAOMT11, AOET11
Cutter StyleWEZ
SeriesWEZ
Coolant ThroughYes
Tool MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Sumitomo
Cutting Diameter (Inch):
2-1/2"
Cutting Diameter (Decimal Inch):
2.5000"
Cutting Diameter (mm):
63.50mm
Series:
WEZ
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
