Product Specifications
| EDP Number | 2600AKD |
| Product Code-ANSI | GNDLR2525M-220 |
| Series | GND |
| Insert Width (Inch) | 0.0787" |
| Insert Width (mm) | 2.00mm |
| Head Length (mm) | 44.50mm |
| Maximum Depth of Cut (Inch) | 0.7874" |
| Maximum Depth of Cut (mm) | 20.00mm |
| Shank Width (mm) | 25.00mm |
| Shank Height (mm) | 25.00mm |
| Overall Length (mm) | 150.00mm |
| Insert Holding Method | Clamp |
| Hand | Right Hand |

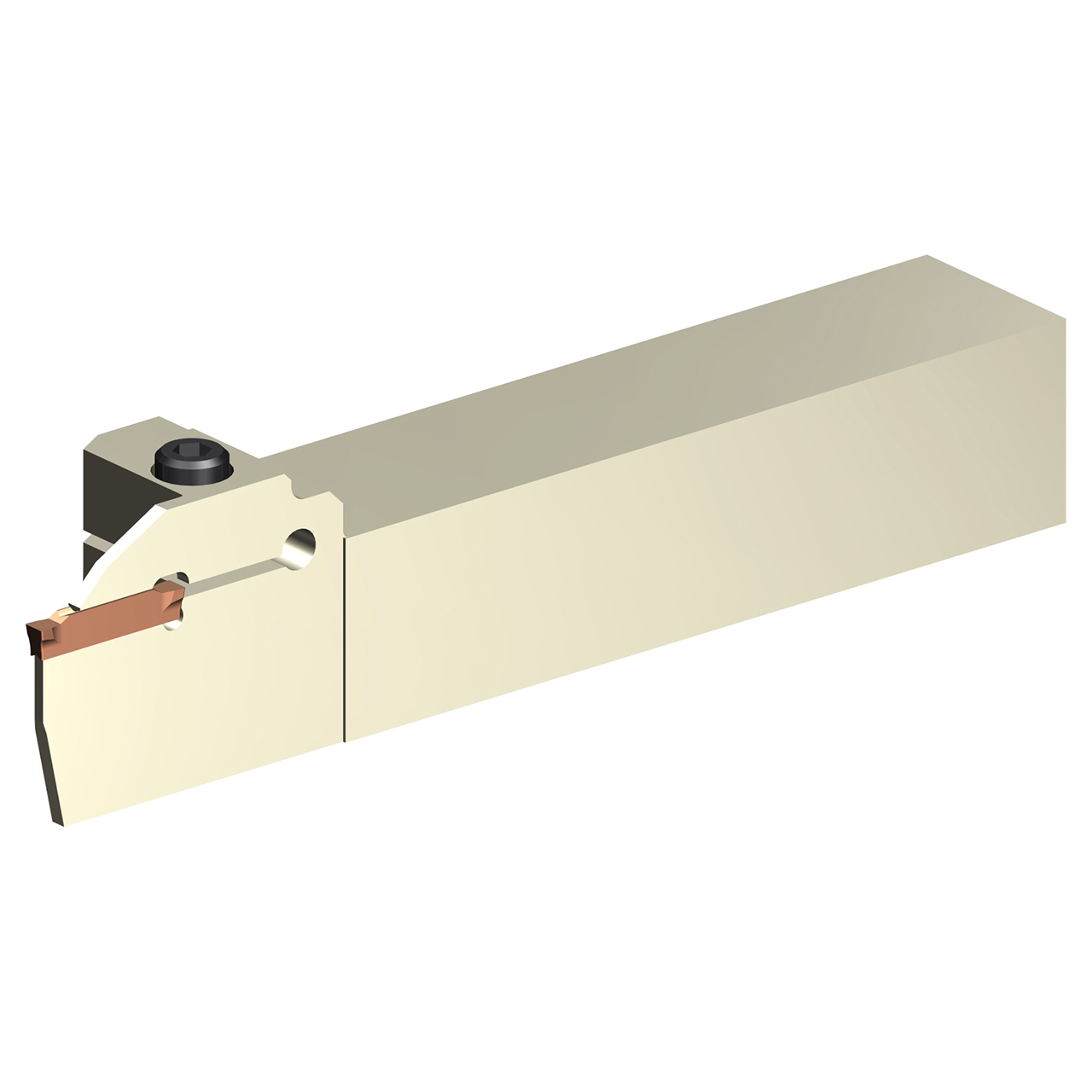

| Tool Holder Style | Deep OD Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Hand of Holder:
Right Hand
Maximum Depth of Cut (Inch):
25/32"
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Series:
GND
Toolholder Style:
Deep OD Grooving Tool
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9055"
Overall Length (mm):
150.00mm
Shank Width/Diameter (Inch):
31/32"
Shank Width/Diameter (Decimal Inch):
0.9843"
Shank Width/Diameter (mm):
25.00mm
Shank Height (Inch):
31/32"
interval quantity:
1
Ships:
From California in 1-2 Days
