Product Specifications

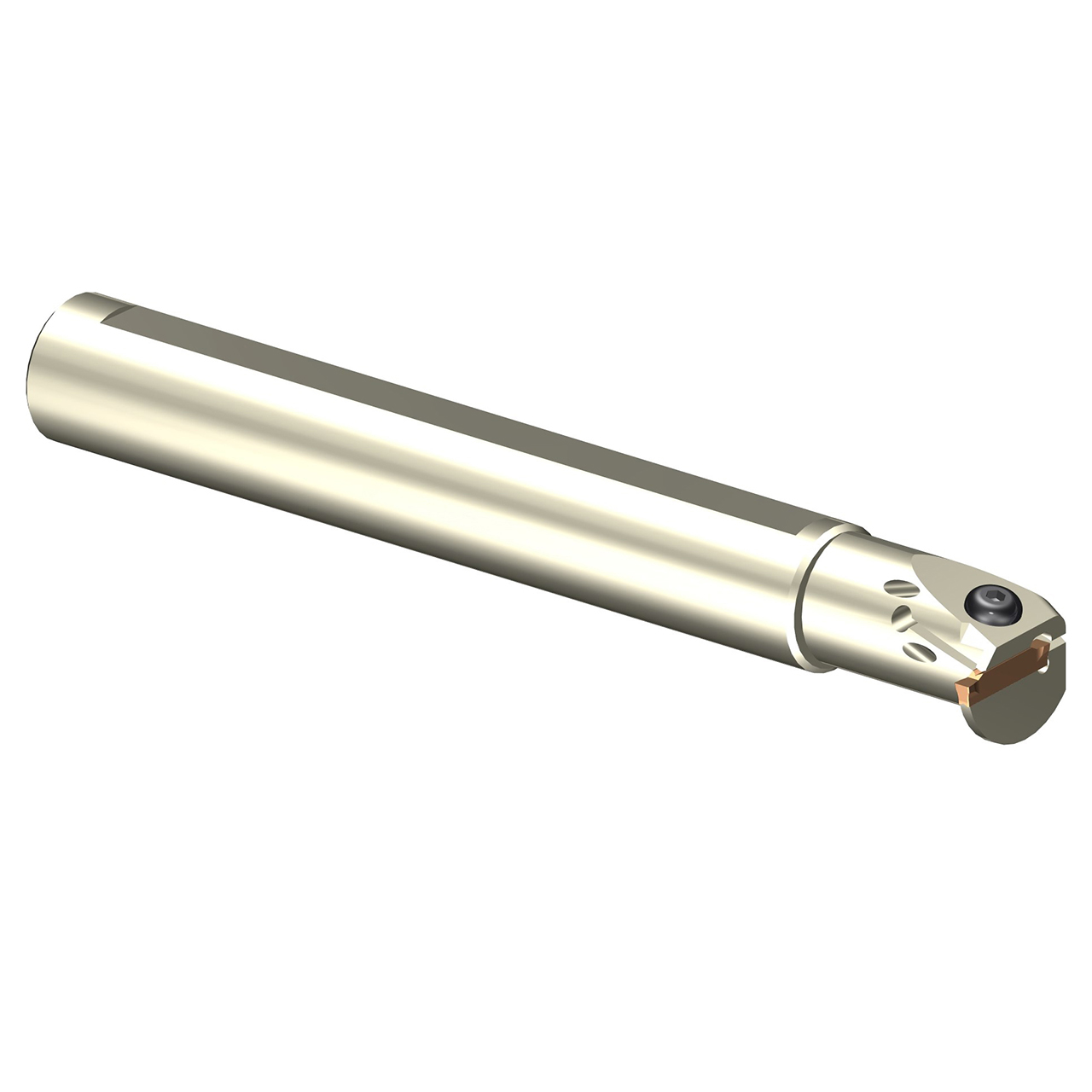

| EDP Number | 2600ATR |
| Product Code-ANSI | GNDIL2532-T506 |
| Series | GND |
| Insert Width (Inch) | 0.1969" |
| Insert Width (mm) | 5.00mm |
| Head Length (mm) | 40.00mm |
| Maximum Depth of Cut (Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 6.00mm |
| Shank Height (mm) | 23.00mm |
| Overall Length (mm) | 197.50mm |
| Insert Holding Method | Clamp |
| Hand | Left Hand |
| Tool Holder Style | ID Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Hand of Holder:
Left Hand
Maximum Depth of Cut (Inch):
1/4"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6.00mm
Series:
GND
Toolholder Style:
ID Grooving Tool
Overall Length (Inch):
7-25/32"
Overall Length (Decimal Inch):
7.7756"
Overall Length (mm):
197.50mm
Shank Height (Inch):
29/32"
interval quantity:
1
Ships:
From California in 1-2 Days
