Product Specifications
| EDP Number | 2600AYA |
| Product Code-ANSI | GNDMR2525M-1.2510 |
| Series | GND |
| Insert Width (Inch) | 0.0492" |
| Insert Width (mm) | 1.25mm |
| Head Length (mm) | 36.00mm |
| Maximum Depth of Cut (Inch) | 0.3937" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Shank Width (mm) | 25.00mm |
| Shank Height (mm) | 25.00mm |
| Overall Length (mm) | 150.00mm |
| Insert Holding Method | Clamp |
| Hand | Right Hand |

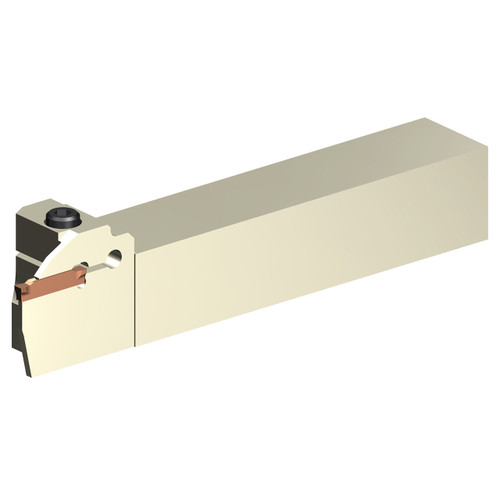

| Tool Holder Style | Multi-Function OD Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Hand of Holder:
Right Hand
Maximum Depth of Cut (Inch):
13/32"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Series:
GND
Toolholder Style:
Multi-Function OD Grooving Tool
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9055"
Overall Length (mm):
150.00mm
Shank Width/Diameter (Inch):
31/32"
Shank Width/Diameter (Decimal Inch):
0.9843"
Shank Width/Diameter (mm):
25.00mm
Shank Height (Inch):
31/32"
interval quantity:
1
Ships:
From California in 1-2 Days
