| EDP Number | 2600BDE |
| Product Code-ANSI | GNDLR1212JX-312.5J |
| Series | GND |
| Insert Width (Inch) | 0.1181" |
| Insert Width (mm) | 3.00mm |
| Head Length (mm) | 22.00mm |
| Maximum Depth of Cut (Inch) | 0.4921" |
| Maximum Depth of Cut (mm) | 12.50mm |
| Shank Width (mm) | 12.00mm |
| Shank Height (mm) | 12.00mm |
| Overall Length (mm) | 120.00mm |
| Insert Holding Method | Clamp |
| Coolant Through | Yes |
| Hand | Right Hand |

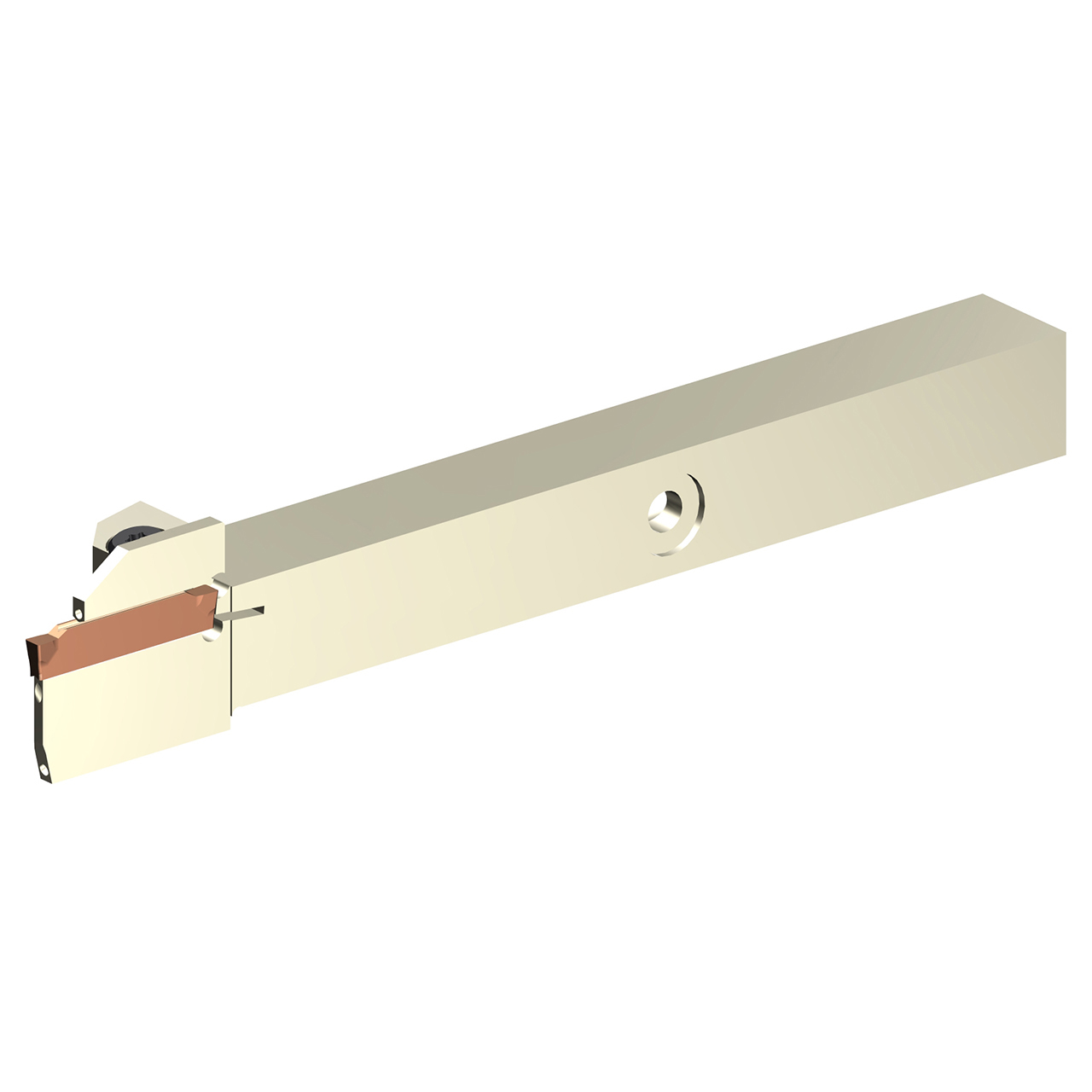

| Tool Holder Style | Deep OD Grooving Tool, Internal Coolant |
