Product Specifications
| EDP Number | 2600BDH |
| Product Code-ANSI | GNDML1616JX-212J |
| Series | GND |
| Insert Width (Inch) | 0.0787" |
| Insert Width (mm) | 2.00mm |
| Head Length (mm) | 30.00mm |
| Maximum Depth of Cut (Inch) | 0.4724" |
| Maximum Depth of Cut (mm) | 12.00mm |
| Shank Width (mm) | 16.00mm |
| Shank Height (mm) | 16.00mm |
| Overall Length (mm) | 120.00mm |
| Insert Holding Method | Clamp |
| Coolant Through | Yes |
| Hand | Left Hand |

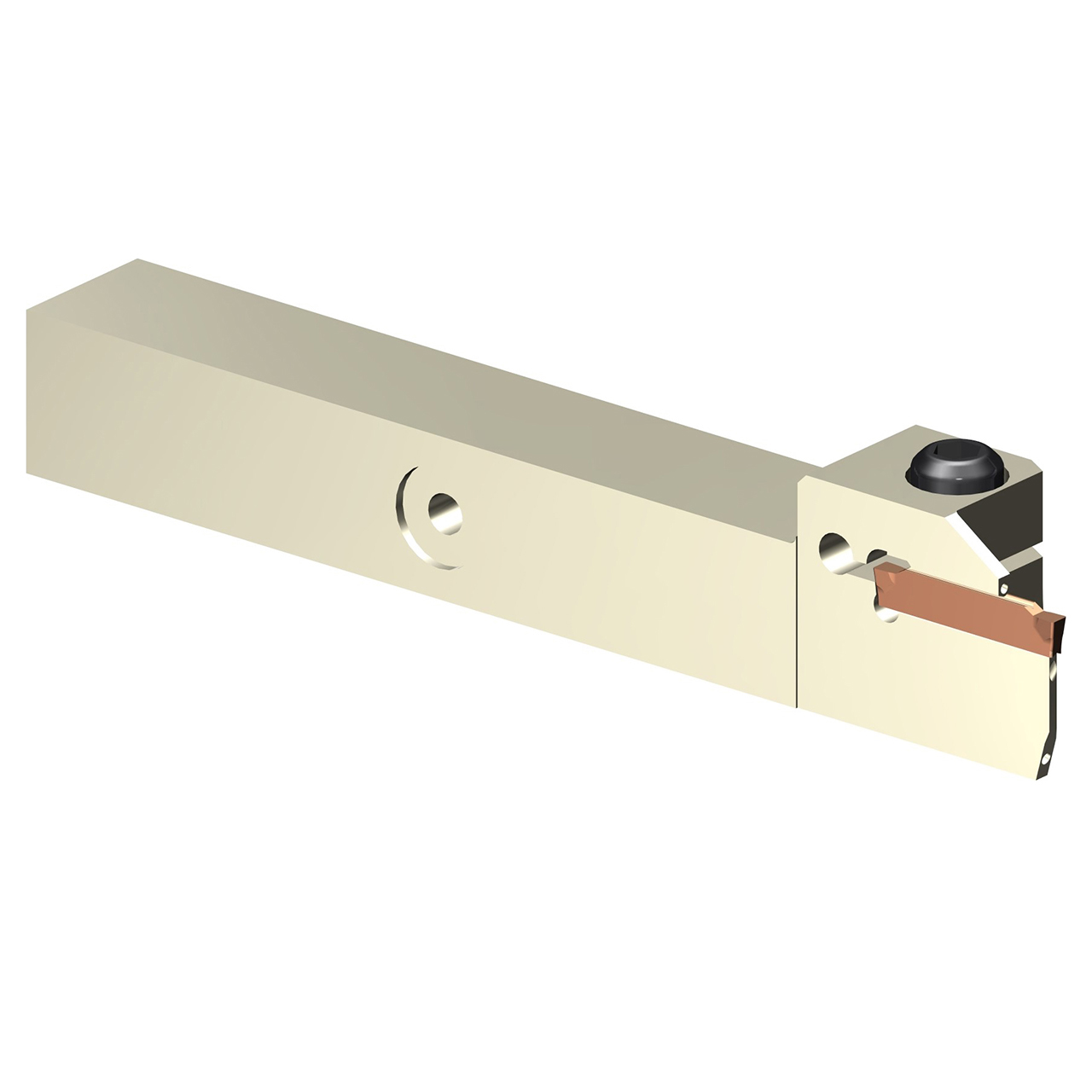

| Tool Holder Style | Multi-Function OD Grooving Tool, Internal Coolant |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Hand of Holder:
Left Hand
Maximum Depth of Cut (Inch):
15/32"
Maximum Depth of Cut (Decimal Inch):
0.4724"
Maximum Depth of Cut (mm):
12.00mm
Series:
GND
Toolholder Style:
Multi-Function OD Grooving Tool, Internal Coolant
Overall Length (Inch):
4-23/32"
Overall Length (Decimal Inch):
4.7244"
Overall Length (mm):
120.00mm
Shank Width/Diameter (Inch):
5/8"
Shank Width/Diameter (Decimal Inch):
0.6299"
Shank Width/Diameter (mm):
16.00mm
Shank Height (Inch):
5/8"
interval quantity:
1
Ships:
From California in 1-2 Days
