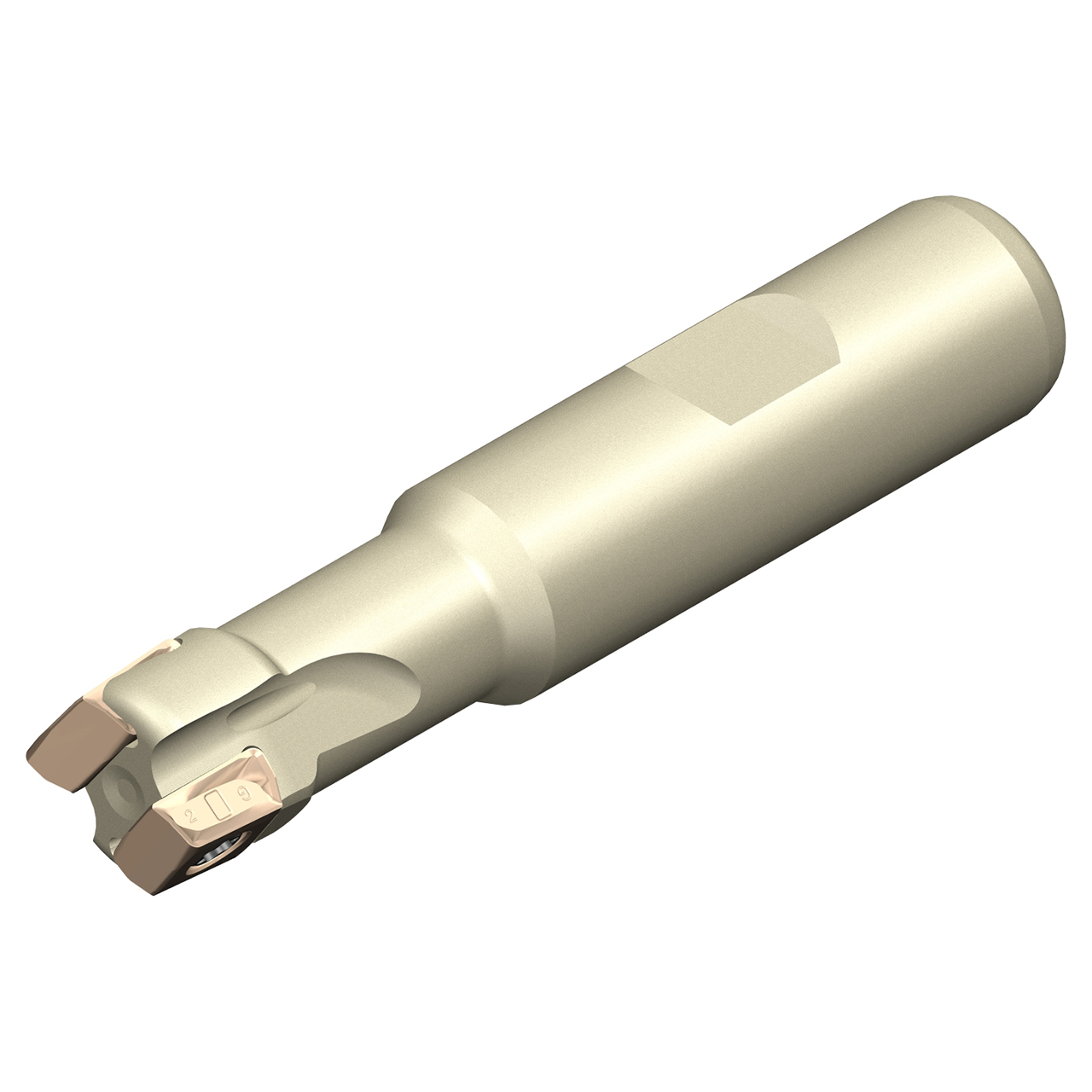

Product Specifications
| EDP Number | 2900W4A |
| Product Code-ANSI | TSX30625EW |
| Maximum Depth of Cut (Decimal Inch) | 0.3150" |
| Cutting Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Length (Decimal Inch) | 1.9060" |
| Overall Length (Decimal Inch) | 3.2180" |
| Number of Inserts | 2 |
| Hand | R |
| Insert Compatibility | LNEX08 |
| Cutter Style | TSX |
| Series | TSX |
| Coolant Through | Yes |
| Tool Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6250"
Cutting Diameter (mm):
15.88mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3-3/16"
Overall Length (Decimal Inch):
3.2180"
Overall Length (mm):
81.74mm
Series:
TSX
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
