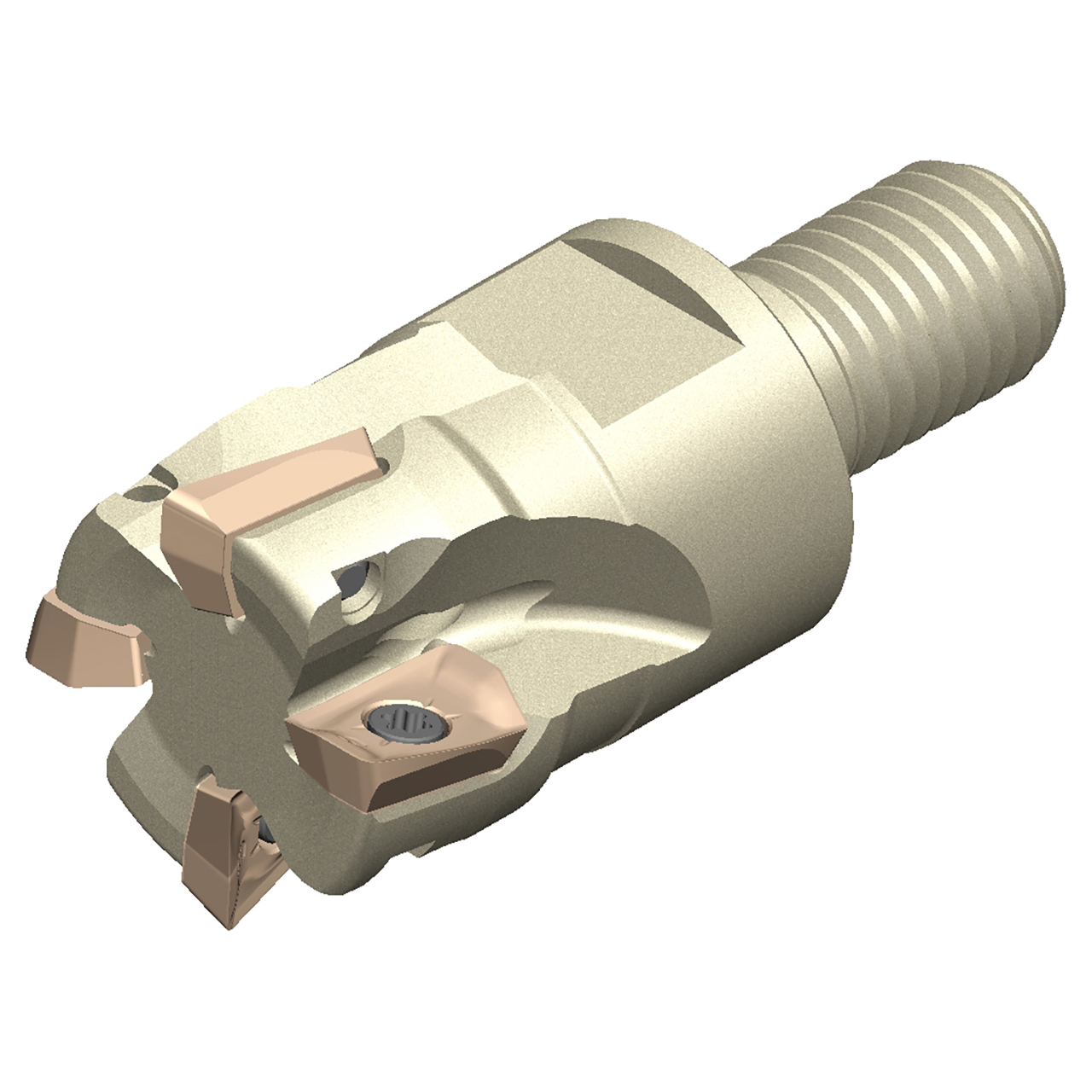

Sumitomo 2900W6D | WEZ20750M10Z3 0.7500" Diameter x 0.3940" Depth of Cut x 1.9290" OAL WEZ Indexable Square-Shoulder End Mill

$224.58 $202.12
(You save $22.46)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Cutting Diameter (Inch):
3/4"
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.05mm
Overall Length (Inch):
1-15/16"
Overall Length (Decimal Inch):
1.9290"
Overall Length (mm):
49.00mm
Series:
WEZ
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
SKU:
23186214
Weight:
0.09 LBS
Shipping:
Free Shipping
Sumitomo 2900W6D | WEZ20750M10Z3 0.7500" Diameter x 0.3940" Depth of Cut x 1.9290" OAL WEZ Indexable Square-Shoulder End Mill

Product Specifications
EDP Number2900W6D
Product Code-ANSIWEZ20750M10Z3
Maximum Depth of Cut (Decimal Inch)0.3940"
Cutting Diameter (Decimal Inch)0.7500"
Overall Length (Decimal Inch)1.9290"
Number of Inserts3
Mounting Screw Hole Size At Machine EndM10
HandR
Insert CompatibilityAOMT11, AOET11
Cutter StyleWEZ
SeriesWEZ
Coolant ThroughYes
Tool MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Sumitomo
Cutting Diameter (Inch):
3/4"
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.05mm
Overall Length (Inch):
1-15/16"
Overall Length (Decimal Inch):
1.9290"
Overall Length (mm):
49.00mm
Series:
WEZ
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
