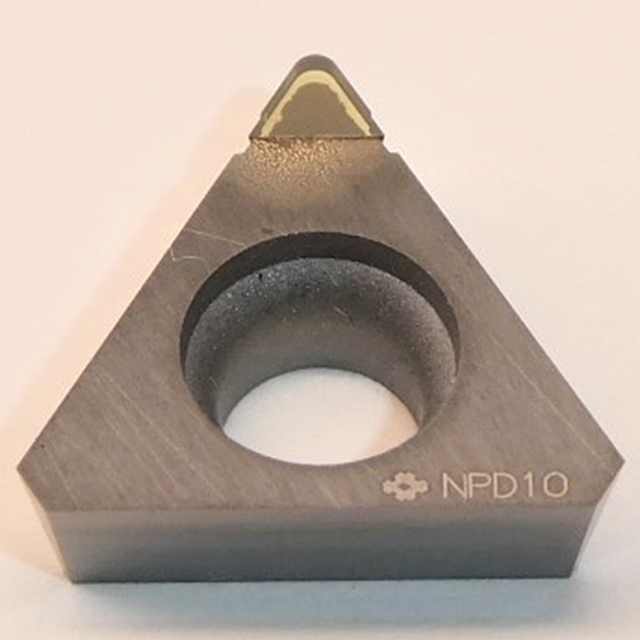

| EDP Number | 332T024 |
| Product Code-ANSI | TPMA330.5RH-NPD10 |
| Product Code-ISO | TPMW160402RH |
| Manufacturer Grade Identification | NPD10 |
| Series | NPD10 |
| Effective Length (Inch) | 0.0906" |
| Effective Length (mm) | 2.30mm |
| Nose Radius (Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.525mm |
| Hole Diameter (mm) | 4.40mm |
| Insert Thickness (Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Insert Size | 330.5 |
| Corner Angle | 60 Degree |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | PCD |
| Insert Style | TPMA |
| Tolerance Class | M |
| Coating | Uncoated Binderless PCD |
| Insert Holding Method | Pin & Clamp |
| Standard Designation of the Grade, Main Application | Hard Brittle Material |
