Product Specifications

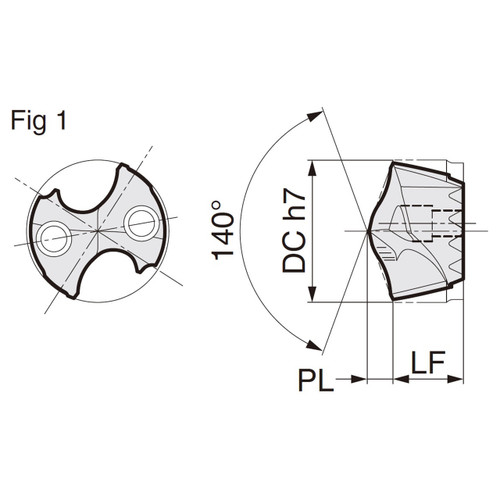

| Manufacturer Part Number | U101345 |
| Product Code - Sumitomo | SMDT06406MTL-ACX70 |
| Manufacturer Grade Identification | ACX70 |
| Series | SMD Replaceable Tip Drills |
| Cutting Diameter (Inch) | 0.6406" |
| Head Length (Inch) | 0.4567" |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Coating | DEX/TiAlCr/TiSi |
| Cutting Direction | Right Hand |
| Coolant Through | Coolant Through |
| Insert Holding Method | Screw |
| Tip Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Diameter (Inch):
5/8"
Diameter (Decimal Inch):
0.6406"
Diameter (mm):
16.27mm
Included Angle:
140 Degree
Material:
Carbide
Manufacturer's Grade:
ACX70
Series:
SMD Replaceable Tip Drills
Coating:
DEX/TiAlCr/TiSi
Through Coolant:
Coolant Through
interval quantity:
1
Ships:
From California in 1-2 Days
