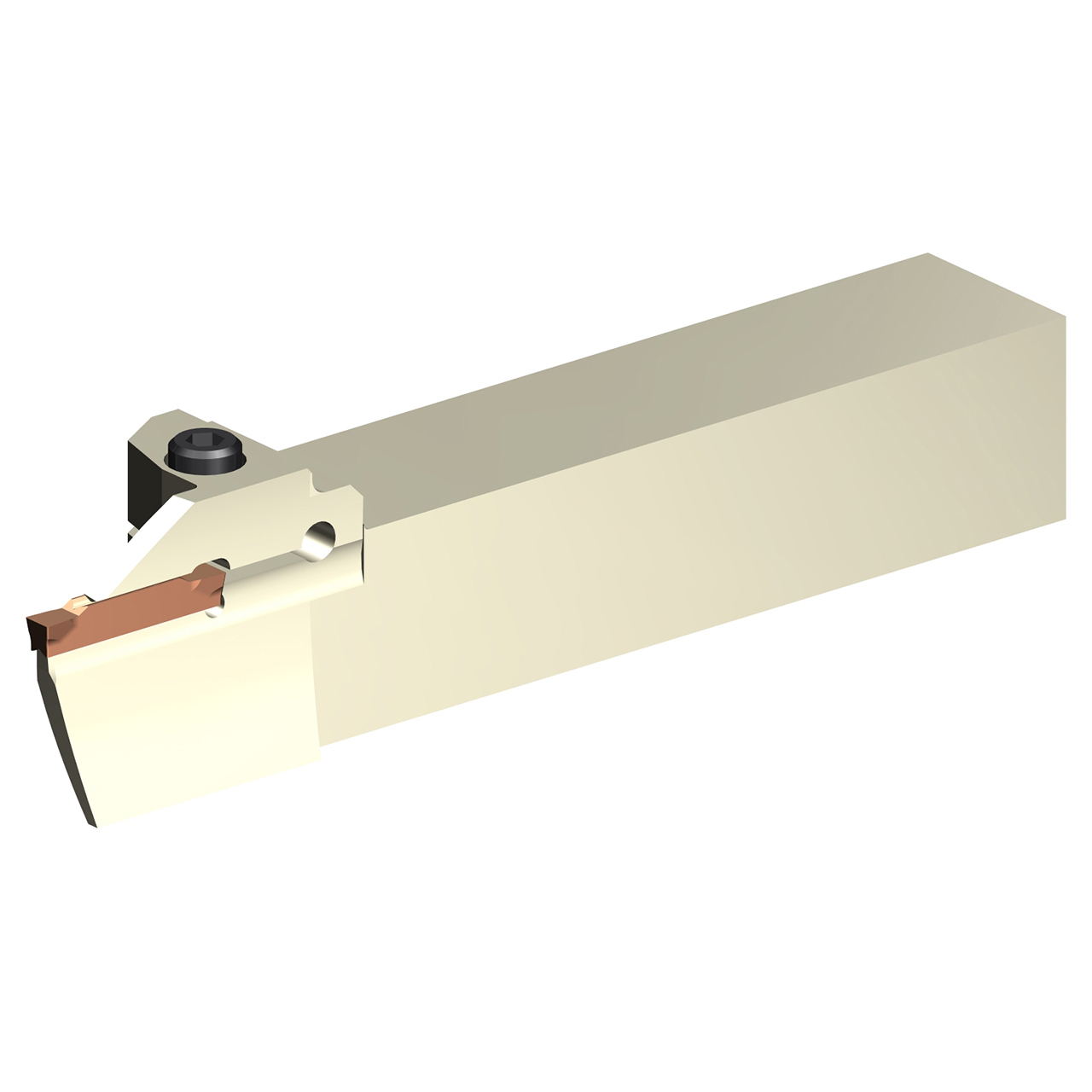

Sumitomo U104397 | GNDFR164M-090-280 0.9000" Maximum Depth of Cut x 1.0000" Shank Width x 6.0000" OAL GND Indexable Cut-Off Toolholder

Sumitomo U104397 | GNDFR164M-090-280 0.9000" Maximum Depth of Cut x 1.0000" Shank Width x 6.0000" OAL GND Indexable Cut-Off Toolholder

SKU: 55054108 Weight: 1.90 LBS Minimum Purchase: 1 unit
UPC:
$194.99
Ships: From California in 1-2 Days
Shipping: Calculated at Checkout

About This Item


Product Specifications
EDP NumberU104397
Product Code-ANSIGNDFR164M-090-280
SeriesGND
Insert Width (Inch)0.1575"
Insert Width (mm)4.00mm
Head Length (Inch)1.8350"
Maximum Depth of Cut (Inch)0.9000"
Maximum Depth of Cut (mm)22.86mm
Maximum Workpiece Diameter (Inch)39.3701"
Maximum Workpiece Diameter (mm)1000.00mm
Shank Width (Inch)1.0000"
Shank Height (Inch)1.0000"
Overall Length (Inch)6.0000"
Insert Holding MethodClamp
HandRight Hand
Tool Holder StyleFace Grooving Tool
