| EDP Number | U104439 |
| Product Code-ANSI | GNDLSR166M-090 |
| Series | GND |
| Insert Width (Inch) | 0.2500" |
| Insert Width (mm) | 6.35mm |
| Head Length (Inch) | 1.0000" |
| Maximum Depth of Cut (Inch) | 0.9000" |
| Maximum Depth of Cut (mm) | 22.86mm |
| Shank Width (Inch) | 1.0000" |
| Shank Height (Inch) | 1.0000" |
| Overall Length (Inch) | 5.8750" |
| Insert Holding Method | Clamp |
| Hand | Right Hand |

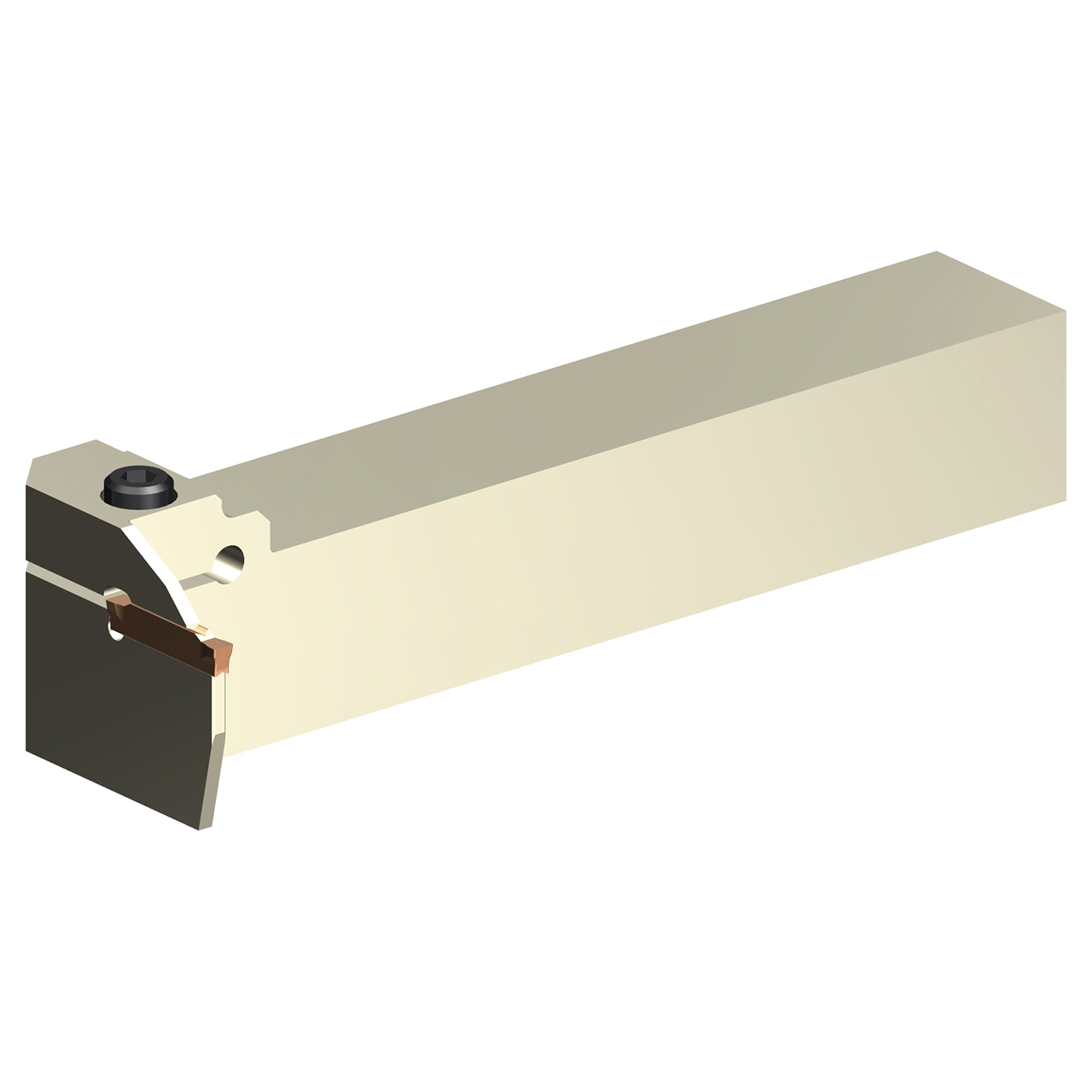

| Tool Holder Style | 90 degree Deep OD Grooving Tool |
