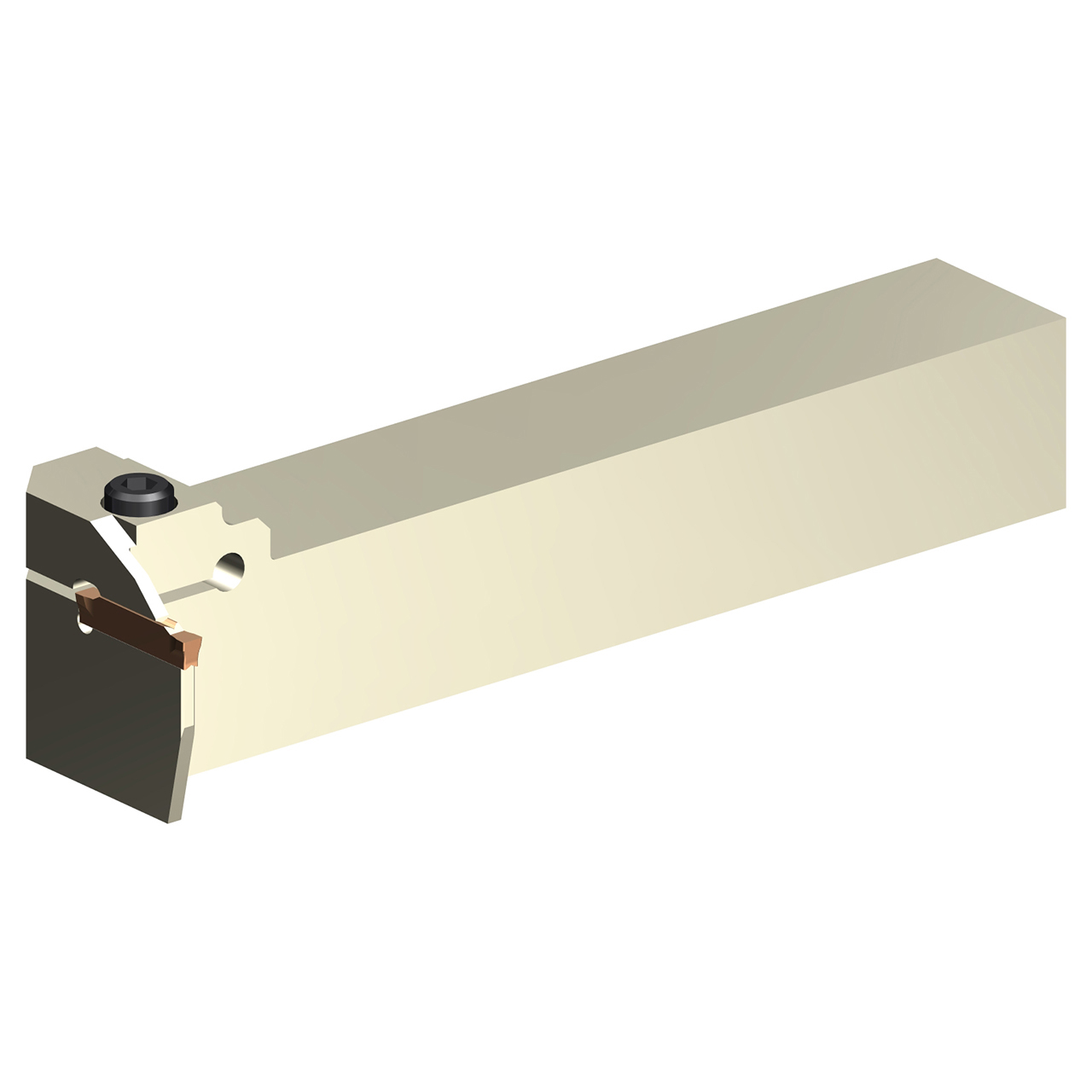

Product Specifications
EDP Number | U104447 |
Product Code-ANSI | GNDMSR166M-055 |
Series | GND |
Insert Width (Inch) | 0.2500" |
Insert Width (mm) | 6.35mm |
Head Length (Inch) | 1.0000" |
Maximum Depth of Cut (Inch) | 0.5500" |
Maximum Depth of Cut (mm) | 13.97mm |
Shank Width (Inch) | 1.0000" |
Shank Height (Inch) | 1.0000" |
Overall Length (Inch) | 5.8819" |
Insert Holding Method | Clamp |
Hand | Right Hand |
Tool Holder Style | 90 degree Multi OD Grooving Tool |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Hand of Holder:
Right Hand
Maximum Depth of Cut (Inch):
9/16"
Maximum Depth of Cut (Decimal Inch):
0.5500"
Maximum Depth of Cut (mm):
13.97mm
Series:
GND
Toolholder Style:
90 degree Multi OD Grooving Tool
Overall Length (Inch):
5-7/8"
Overall Length (Decimal Inch):
5.8819"
Overall Length (mm):
149.40mm
Shank Width/Diameter (Inch):
1"
Shank Width/Diameter (Decimal Inch):
1.0000"
Shank Width/Diameter (mm):
25.40mm
Shank Height (Inch):
1"
interval quantity:
1
