Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

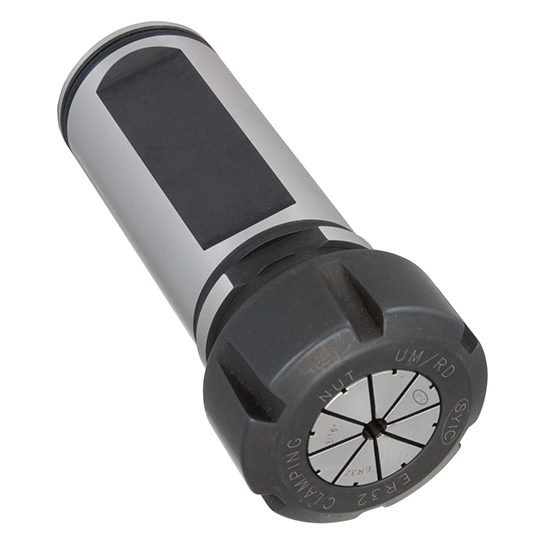

Techniks Collet Chucks are made with precision to achieve T.I.R. of 0.0001" or less. The Coolant-thru feature is suitable for coolant up to 1,500 PSI. The holder fits CNC Lathes and can also be used for tapping applications. It seals coolant from the turret to the shank with an o-ring on the end of the shank.| UNSPSC Code | 27112807 |
| Collet Series | ER25 |
| Body Dia-Workpiece Side (in) | 1.654 |
| Body Dia-Workpiece Side (mm) | 42 |
| Gage Length (in) | 1.457 |
| Gage Length (mm) | 37 |
| Gage Length-Face Contact (in) | N/A |
| Gage Length-Face Contact (mm) | N/A |
| Lock Nut Diameter (in) | 1.65 |
| Lock Nut Diameter (mm) | 41.9 |
| Overall Length (in) | 3.82 |
| Overall Length (mm) | 97 |
| Material | 8620 Steel |
| Taper | 1-1/4" Straight Shank |
| Overall Diameter (in) | 1.25 |
| Overall Diameter (mm) | 31.75 |
| Unit of Tool | Metric or Inch |
| Type | SS Collet Chuck |
| Style | Single Ended |
| Capacity Range (in) | 0.039" - 0.75" |
| Capacity Range (mm) | 1 - 19.1mm |
| Balanced to | N/A |
