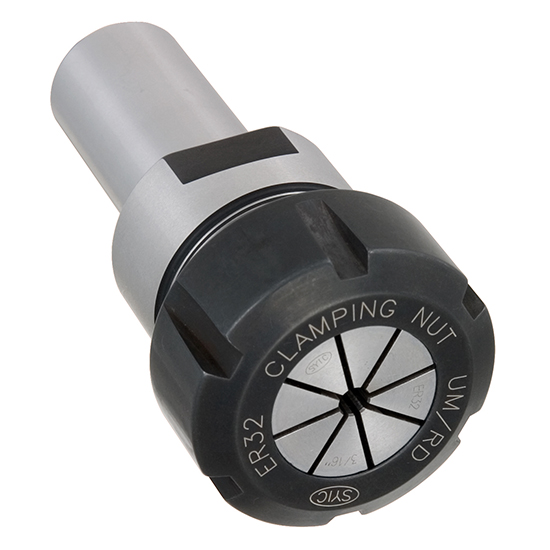

Techniks Collet Chuck Extensions are made with precision to achieve T.I.R. of 0.0001" or less.| UNSPSC Code | 27112807 |
| Collet Series | ER32 |
| Body Dia-Workpiece Side (in) | 1.969 |
| Body Dia-Workpiece Side (mm) | 50 |
| Gage Length (in) | 2.028 |
| Gage Length (mm) | 51.5 |
| Gage Length-Face Contact (in) | N/A |
| Gage Length-Face Contact (mm) | N/A |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Overall Length (in) | 4 |
| Overall Length (mm) | 101.6 |
| Material | 8620 Steel |
| Taper | 1.0" Straight Shank |
| Overall Diameter (in) | 1 |
| Overall Diameter (mm) | 25.4 |
| Unit of Tool | Metric or Inch |
| Type | SS Collet Chuck Extension |
| Style | Single Ended |
| Capacity Range (in) | 0.043" - 0.83" |
| Capacity Range (mm) | 1.1 - 21mm |
| Balanced to | N/A |
