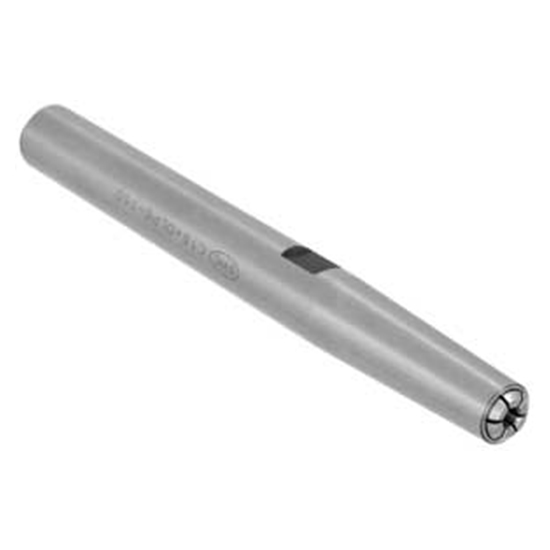

Techniks 06032-3 | 1/2" SlimFIT 6 3" Toolholder Extension

$220.00 $154.00
(You save $66.00)
Ships:
From Partner Facility
Brand:
Techniks
Projection (Decimal Inch):
1.8900"
Projection (mm):
48mm
Nose Diameter (Decimal Inch):
0.5500"
Nose Diameter (mm):
14mm
Through Coolant:
No
Ships:
From Partner Facility
SKU:
40002310
UPC:
650229403658
Weight:
0.30 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Works with a variety of toolholders to extend the reach of your existing tooling. Techniks SlimFIT Extensions are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.

Product Specifications
UNSPSC Code 27112809
Nose Dia (in) 0.55
Nose Dia (mm) 14
Body Dia (in) 0.5
Body Dia (mm) 12.7
Collet Series SlimFIT 6
Mount 1/2" Straight Shank
Unit of Tool Inch
Shank Range (in) 0.094 - 0.25
Shank Range (mm) 2.39 - 6.35
Shank Size (in) N/A
Shank Size (mm) N/A
Type SlimFIT Extension
Style Straight Shank
Overall Diameter (in) 0.5
Overall Diameter (mm) 12.7
Gage Length (in) 1.89
Gage Length (mm) 48
Gage Length-Face Contact (in) N/A
Gage Length-Face Contact (mm) N/A
Overall Length (in) 3
Overall Length (mm) 76.2
Material H13 Steel
