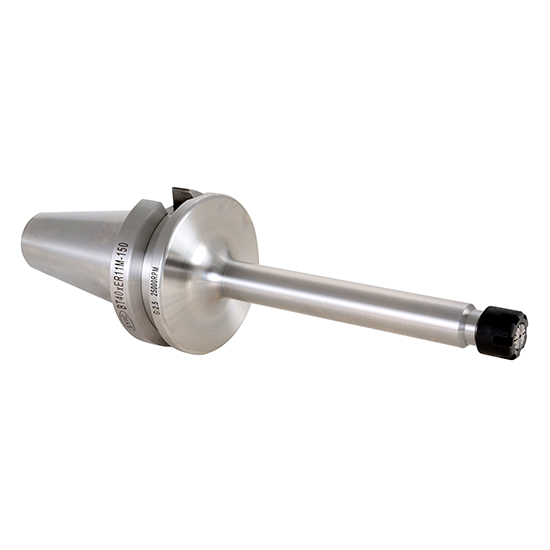

Techniks 16324 | BT40 ER11 Mini Nut Holder x 150mm

$224.00 $156.80
(You save $67.20)
Ships:
From Partner Facility
Brand:
Techniks
Collet System:
ER
Collet Series:
ER11
Taper Size:
BT40
Shank Diameter (Decimal Inch):
0.7500"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
40003894
UPC:
650229408400
Weight:
2.60 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.

Product Specifications
UNSPSC Code 27112807
Collet Series ER11
Body Dia-Workpiece Side (in) 0.748
Body Dia-Workpiece Side (mm) 19
Gage Length (in) 5.91
Gage Length (mm) 150
Gage Length-Face Contact (in) 5.83
Gage Length-Face Contact (mm) 148
Lock Nut Diameter (in) 0.75
Lock Nut Diameter (mm) 19.1
Overall Length (in) 8.48
Overall Length (mm) 215.4
Material 8620 Steel
Taper BT40
Overall Diameter (in) 2.48
Overall Diameter (mm) 63
Unit of Tool Metric or Inch
Type V-Flange Collet Chuck
Style Single Ended
Capacity Range (in) 0.019" - 0.28"
Capacity Range (mm) 0.5 - 7.1mm
Balanced to 25,000 RPM at G2.5
