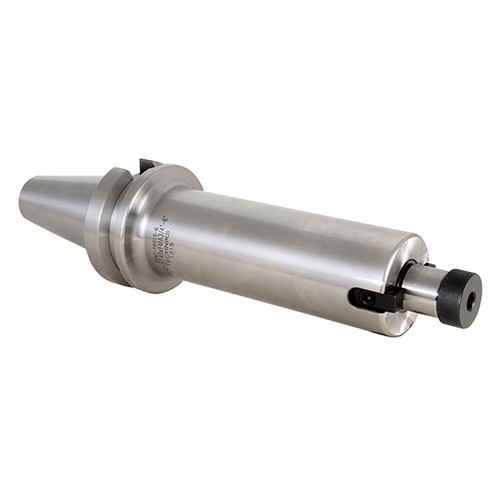

Techniks 16646 | 1-1/2" - 75mm BT50 Face Mill Arbor

$360.00 $252.00
(You save $108.00)
Ships:
From Partner Facility
Brand:
Techniks
Taper Size:
BT50
Arbor Size (Decimal Inch):
1.5000"
Arbor Size (mm):
38.10mm
Pilot Diameter (Decimal Inch):
0.9400"
Pilot Diameter (mm):
23.90mm
Projection (Decimal Inch):
3"
Projection (mm):
3mm
Ships:
From Partner Facility
IsDiscontinued:
SKU:
40002347
UPC:
Weight:
13.60 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.

Product Specifications
UNSPSC Code 27112809
Overall Diameter (in) 3.94
Overall Diameter (mm) 100.1
Body Width (in) 3.8
Body Width (mm) 96.5
Taper Type BT50
Material 8620 Steel
Type Face Mill Arbor
Style Single Ended
Coolant Supply Optional through Arbor Screw
Hub Diameter (in) 1.5
Hub Diameter (mm) 38.1
Gage Length (in) 3
Gage Length (mm) 3
Gage Length-Face Contact (in) 2.882
Gage Length-Face Contact (mm) 0
Pilot Length (in) 0.94
Pilot Length (mm) 23.9
