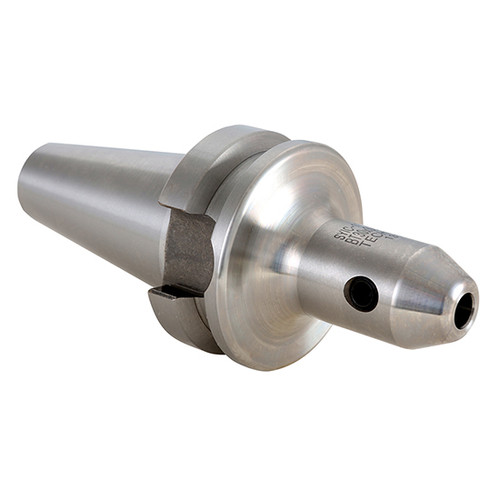

Techniks 17130-3/4 | BT30 X 3/4" Diameter x 2.36" End Mill Holder

$107.00 $74.90
(You save $32.10)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Techniks
Taper Size:
BT30
Hole Diameter (Inch):
3/4"
Nose Diameter (Decimal Inch):
1.7500"
Nose Diameter (mm):
44.50mm
Projection (Decimal Inch):
2.3600"
Projection (mm):
59.90mm
Through Coolant:
No
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
40001745
UPC:
650229408950
Weight:
1.60 LBS
Shipping:
Calculated at Checkout

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks End Mills are balanced to 15,000 RPM to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.

Product Specifications
UNSPSC Code 27112809
Nose Diameter (in) 1.75
Nose Diameter (mm) 44.5
Bore I.D. (in) 0.75
Bore I.D. (mm) 19.1
Taper Type BT30
Material 8620 Steel
Type End Mill Holder
Style Single End
Gage Length (in) 2.36
Gage Length (mm) 59.9
Overall Length (in) 4.26
Overall Length (mm) 108.3
