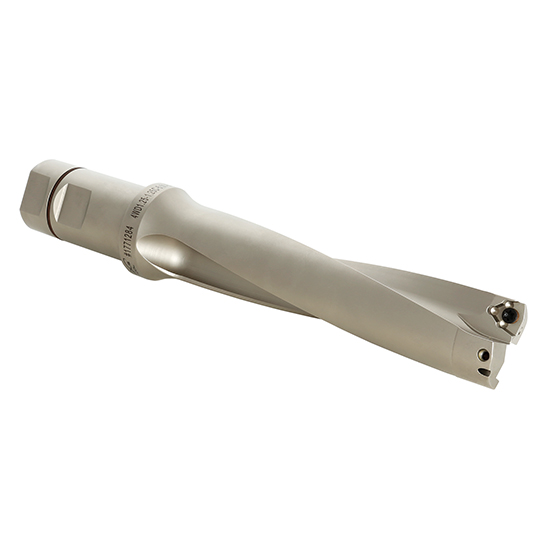

Techniks 1791394 | 4WD2.25-1.50C-9.00-8 (2-1/4"-D-RH) Indexable Drill

About This Item

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Product Specifications

DESIGNATION	4WD2.25-1.50C-9.00-8 (2-1/4"-D-RH)
UNSPSC Code	23242106
GRADE	N/A
CHIP BREAKER	N/A
IC	N/A
THICKNESS	N/A
RADIUS	N/A
CHAMFER WIDTH	N/A
HEIGHT	N/A
LENGTH	N/A
HOLDER ANGLE	N/A
MIN. BORE DIA.	N/A
CUTTING DIAMETER	2.25
ARBOR or SHANK DIAMETER	1.5
SHANK LENGTH	N/A
ASPECT RATIO	4X
MATERIAL	Steel
COATING	N/A
HOLDING SYSTEM	N/A
GAUGE INSERT	N/A
GAUGE INSERT (external)	WCMX 0804
GAUGE INSERT (internal)	WCMX 0804
CHIP BREAKER FUNCTION	N/A
IPR (min)	N/A
IPR (max)	N/A
DOC (min)	N/A
DOC (max)	N/A
IPT (min)	N/A
IPT (max)	N/A
CUTTER or SHANK	N/A
SHANK STYLE	N/A
MAX Ap (DOC)	N/A
CUTTER APPROACH ANGLE	N/A
COOLANT THRU	N/A
NUMBER OF TEETH	N/A
INTERNAL or EXTERNAL	N/A
WEIGHT PER PIECE	7.6
QTY PER BOX	N/A
CLAMP	N/A
CLAMP SCREW	N/A
SHIM	N/A
SHIM SCREW	N/A
WRENCH	9355555
SHIM PIN	N/A
SCREW	9319345
LEVER	N/A
