Techniks 21005-45C | CAT 50-Coolant-I 45 Retention Knob

$18.20
Brand:
Techniks
Type:
Standard
Taper Size:
CAT50
Thread Size:
1 - 8
Angle Radius (Degree):
45 Degrees
Knob Diameter (Decimal Inch):
0.9060"
Style:
MAS I Coolant
Through Coolant (yes/no):
Coolant Through
SKU:
40002896
Weight:
0.70 LBS
Shipping:
Calculated at Checkout

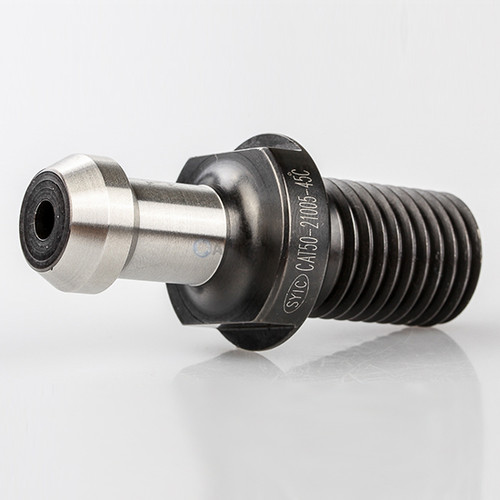

Techniks 21005-45C | CAT 50-Coolant-I 45 Retention Knob
All mating surfaces are precision ground. Manufactured to the highest standards for maximum safety and long life. Hardened for maximum longevity.

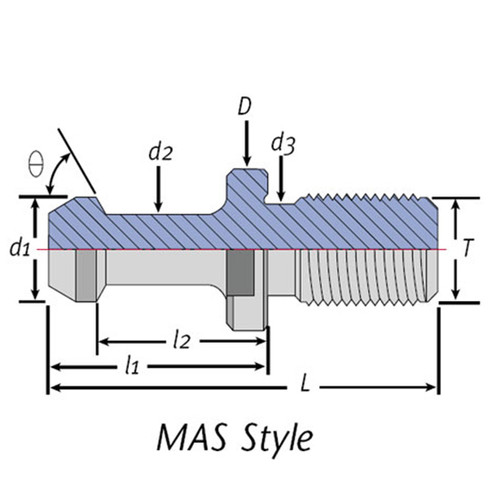

Product Specifications
UNSPSC Code 20111707
For Use With CAT50 Taper Holders
Style MAS I Coolant
Threads 1 - 8
Knob Diameter 0.906"
Angle 45°
Neck 0.669"
Hole N/A
Overall Length 3.346"
Flat Size N/A
Spindle Taper CAT50 Taper Holders
Diameter N/A
Size N/A



Brand:
Techniks
Type:
Standard
Taper Size:
CAT50
Thread Size:
1 - 8
Angle Radius (Degree):
45 Degrees
Knob Diameter (Decimal Inch):
0.9060"
Style:
MAS I Coolant
Through Coolant (yes/no):
Coolant Through
