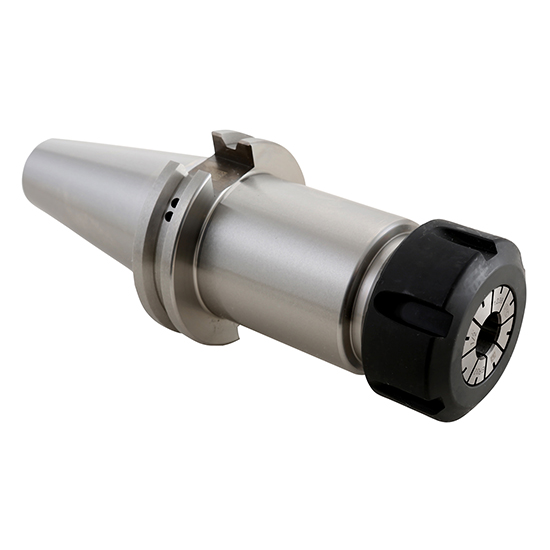

Techniks 22231F | CAT40 ER16 CoolFLEX Collet Chuck x 6" Length

$256.00 $179.20
(You save $76.80)
Ships:
From Partner Facility
Brand:
Techniks
Collet System:
ER
Collet Series:
ER16
Taper Size:
CAT40
Shank Diameter (Decimal Inch):
1.2600"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
40003907
UPC:
650229411080
Weight:
3.40 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.

Product Specifications
UNSPSC Code 27112807
Collet Series ER16
Body Dia-Workpiece Side (in) 1.102
Body Dia-Workpiece Side (mm) 28
Gage Length (in) 6
Gage Length (mm) 152.4
Gage Length-Face Contact (in) 5.87
Gage Length-Face Contact (mm) 149.2
Lock Nut Diameter (in) 1.26
Lock Nut Diameter (mm) 32
Overall Length (in) 8.68
Overall Length (mm) 220.5
Material 8620 Steel
Taper CAT40
Overall Diameter (in) 2.5
Overall Diameter (mm) 63.5
Unit of Tool Metric or Inch
Type V-Flange CoolFLEX Collet Chuck
Style Single Ended
Capacity Range (in) 0.019" - 0.41"
Capacity Range (mm) 0.5 - 10.5mm
Balanced to 25,000 RPM at G2.5
