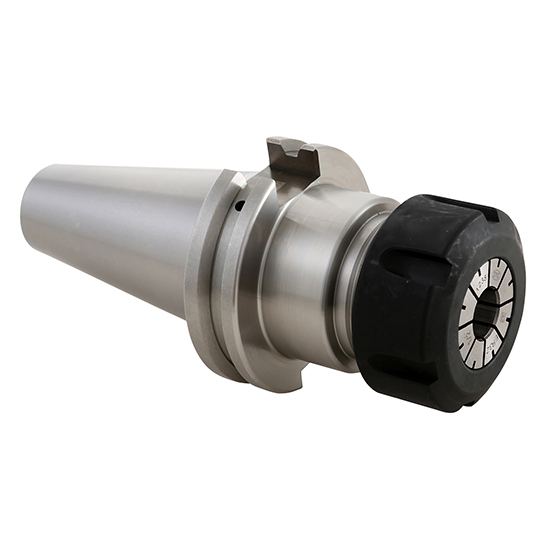

Techniks 22253 | CAT40 ER32 Collet Chuck x 2.76" Length

$197.00 $137.90
(You save $59.10)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Techniks
Collet System:
ER
Collet Series:
ER32
Taper Size:
CAT40
Shank Diameter (Decimal Inch):
1.9700"
Ships:
Same Business Day if Ordered by 12:30PM PT
IsDiscontinued:
False
SKU:
40003925
UPC:
650229411257
Weight:
2.60 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.

Product Specifications
UNSPSC Code 27112807
Collet Series ER32
Body Dia-Workpiece Side (in) 1.969
Body Dia-Workpiece Side (mm) 50
Gage Length (in) 2.76
Gage Length (mm) 70.104
Gage Length-Face Contact (in) 2.63
Gage Length-Face Contact (mm) 66.9
Lock Nut Diameter (in) 1.97
Lock Nut Diameter (mm) 50
Overall Length (in) 5.44
Overall Length (mm) 138.2
Material 8620 Steel
Taper CAT40
Overall Diameter (in) 2.5
Overall Diameter (mm) 63.5
Unit of Tool Metric or Inch
Type V-Flange Collet Chuck
Style Single Ended
Capacity Range (in) 0.043" - 0.83"
Capacity Range (mm) 1.1 - 21mm
Balanced to 25,000 RPM at G2.5
