Description

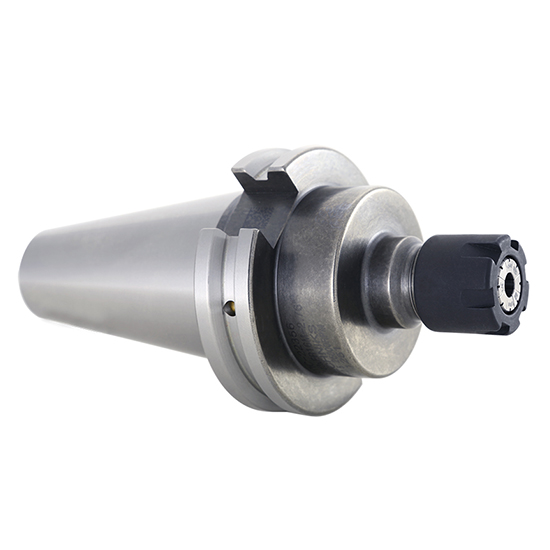

The Techniks 22358 CAT40 Taper Mini Nut Collet Chuck is a high-performance toolholding solution made for precision machining applications. Engineered for accuracy and reliability, this 1.750" diameter mini nut collet chuck delivers excellent balance and stability at high speeds. Built from durable 8620 steel, it ensures long-lasting performance under demanding machining conditions. This ER16 mini nut collet chuck supports a capacity range from 0.019" to 0.41", making it ideal for a variety of cutting tool sizes. Featuring a 2.500" shank ER16 collet chuck configuration, it integrates seamlessly into CNC machining setups. The 4" projection-length mini nut collet chuck is built to enhance reach while maintaining rigidity. Balanced to G2.5 at 25,000 RPM, it provides smooth and vibration-free operation in high-speed machining. The V-Flange mini nut collet chuck design ensures secure spindle engagement and improved tool stability. Its single-ended style collet chuck construction simplifies tool changes and enhances operational efficiency. With a compact overall length of 6.68", it reduces tool overhang and improves precision. The locknut diameter of 1.26" supports secure collet retention. This CAT40 taper mini nut collet chuck is suitable for both metric and inch tooling systems. It is widely used in workshop machining equipment and automated machining operation environments. Professionals rely on this tool for consistent accuracy and performance. Upgrade your machining setup with this precision-engineered Techniks collet chuck.
Product Features and Benefits
High-Speed G2.5 Balancing
The Techniks 22358 is balanced to 25,000 RPM, ensuring smooth operation for CAT40 Taper Mini Nut Collet Chuck applications.
Durable 8620 Steel Construction
This 1.750" diameter mini nut collet chuck offers strength and longevity in demanding machining environments.
Wide Tool Capacity Range
The ER16 mini nut collet chuck supports tools from 0.019" to 0.41", increasing versatility.
V-Flange Spindle Compatibility
This V-flange mini nut collet chuck ensures secure fitment and stable performance in CNC systems.
Optimized Projection Length
The 4" projection-length mini nut collet chuck provides extended reach without sacrificing rigidity.
Single Ended Efficient Design
The single-ended style collet chuck simplifies tool handling and improves productivity.
Product Specifications
| UNSPSC Code | 27112807 |
| Collet Series | ER16 |
| Body Dia-Workpiece Side (in) | 1.102 |
| Body Dia-Workpiece Side (mm) | 28 |
| Gage Length (in) | 4 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (in) | 3.87 |
| Gage Length-Face Contact (mm) | 98.4 |
| Lock Nut Diameter (in) | 1.26 |
| Lock Nut Diameter (mm) | 32 |
| Overall Length (in) | 6.68 |
| Overall Length (mm) | 169.7 |
| Material | 8620 Steel |
| Taper | CAT40 |
| Overall Diameter (in) | 2.5 |
| Overall Diameter (mm) | 63.5 |
| Unit of Tool | Metric or Inch |
| Type | V-Flange Collet Chuck |
| Style | Single Ended |
| Capacity Range (in) | 0.019" - 0.41" |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Balanced to | 25,000 RPM at G2.5 |
Frequently Asked Questions
What is the Techniks 22358 used for?
This CAT40 Taper Mini Nut Collet Chuck is used for precise tool holding in CNC machining operations.
What is the capacity range of this collet chuck?
The ER16 Mini Nut Collet Chuck supports tools from 0.019" to 0.41".
Is this suitable for high-speed machining?
Yes, this 25000 RPM mini nut collet chuck is balanced for high-speed performance.
What material is this collet chuck made from?
This 8620 steel nut collet chuck provides durability and long service life.
Is it compatible with standard CNC machines?
Yes, this CAT40 Taper Mini Nut Collet Chuck is designed for standard CNC machining systems.
