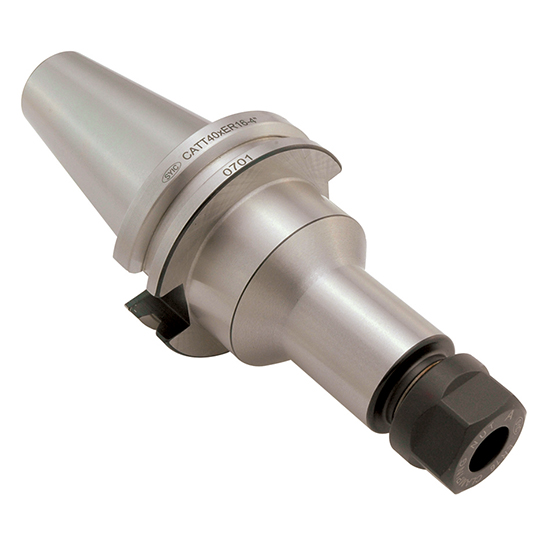

Techniks 46.122.16.400 | CAT40 ER16 DualDRIVE Collet Chuck x 4" Length

$229.00 $160.30
(You save $68.70)
Ships:
From Partner Facility
Brand:
Techniks
Collet System:
ER
Collet Series:
ER16
Taper Size:
CAT40
Shank Diameter (Decimal Inch):
1.2600"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
40004062
UPC:
650229418898
Weight:
2.85 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through either the spindle or the flange (DIN B). The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.

Product Specifications
UNSPSC Code 27112807
Collet Series ER16
Body Dia-Workpiece Side (in) 1.102
Body Dia-Workpiece Side (mm) 28
Gage Length (in) 4
Gage Length (mm) 101.6
Gage Length-Face Contact (in) 3.87
Gage Length-Face Contact (mm) 98.4
Lock Nut Diameter (in) 1.26
Lock Nut Diameter (mm) 32
Overall Length (in) 6.68
Overall Length (mm) 169.7
Material 8620 Steel
Taper CAT40
Overall Diameter (in) 2.5
Overall Diameter (mm) 63.5
Unit of Tool Metric or Inch
Type DualDRIVE Collet Chuck
Style Single Ended DualDRIVE
Capacity Range (in) 0.019" - 0.41"
Capacity Range (mm) 0.5 - 10.5mm
Balanced to 25,000 RPM at G2.5
