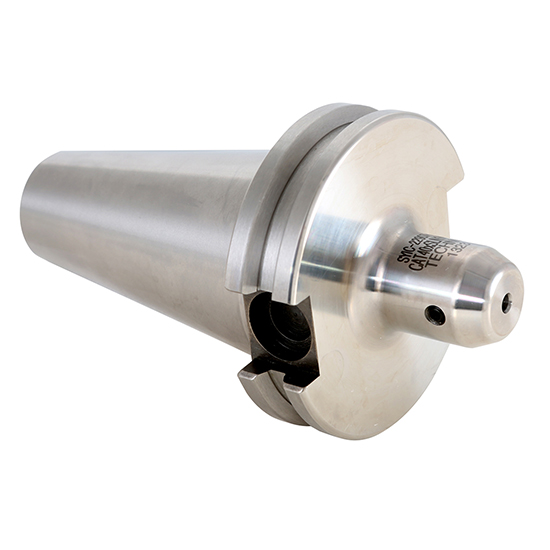

Techniks 22909 | CAT40 X 3/16" Diameter x 2.5" End Mill Holder

$110.00 $77.00
(You save $33.00)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Techniks
Taper Size:
CAT40
Hole Diameter (Inch):
3/16"
Nose Diameter (Decimal Inch):
0.6900"
Nose Diameter (mm):
17.50mm
Projection (Decimal Inch):
2.5000"
Projection (mm):
63.50mm
Through Coolant:
No
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
40001885
UPC:
650229412391
Weight:
2.40 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks End Mills are balanced to 15,000 RPM at G6.3 tolerance to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.

Product Specifications
UNSPSC Code 27112809
Nose Diameter (in) 0.69
Nose Diameter (mm) 17.5
Bore I.D. (in) 0.1875
Bore I.D. (mm) 4.8
Taper Type CAT40
Material 8620 Steel
Type End Mill Holder
Style Single End
Gage Length (in) 2.5
Gage Length (mm) 63.5
Overall Length (in) 5.19
Overall Length (mm) 131.7
